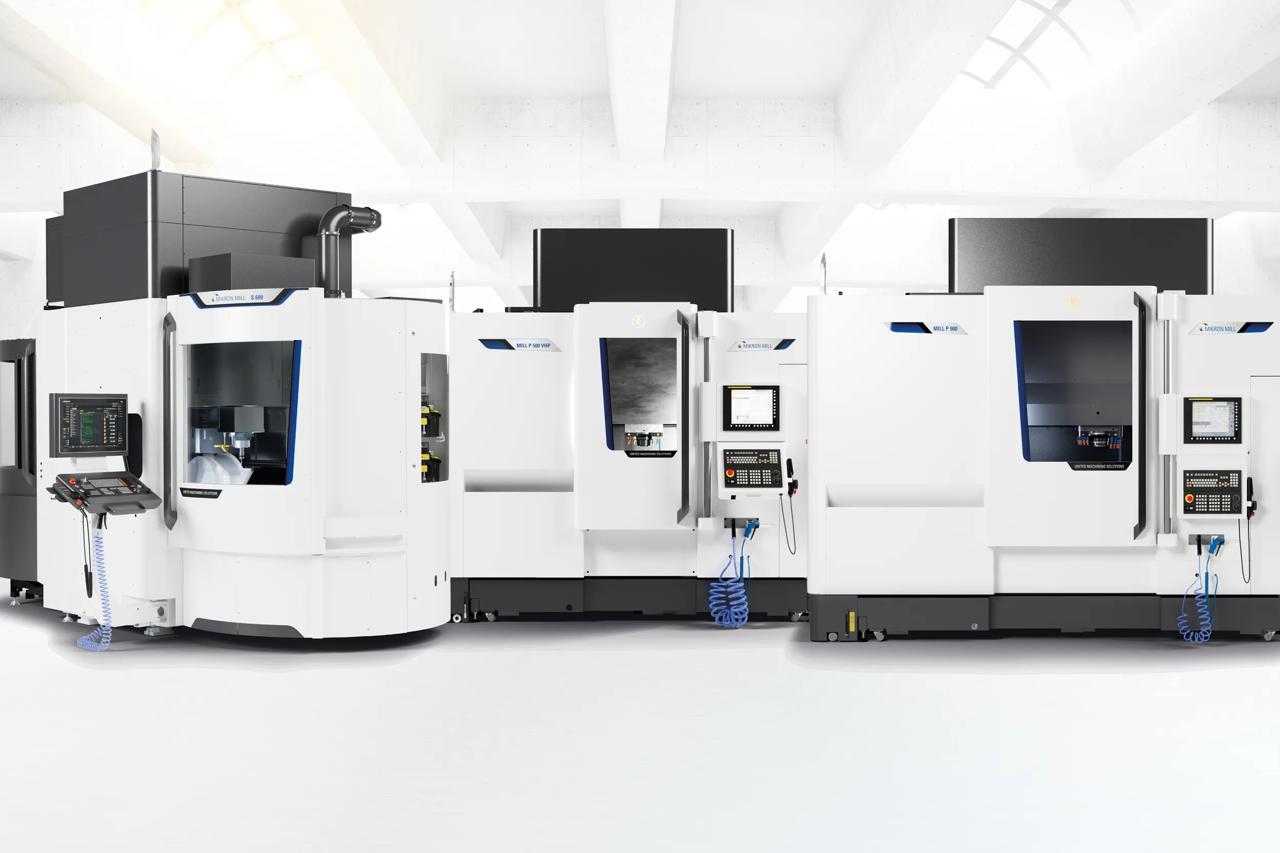

3-axis machining centers

MIKRON MILL offers a comprehensive range of 3-axis machining centers, fully customizable with automation systems and optional features to fit any production environment.

What is 3-axis milling?

3-axis milling is a CNC machining process in which the cutting tool moves along three linear axes, X, Y, and Z, to remove material and shape a workpiece. It is the most widely used milling method, suited for a broad range of parts with flat surfaces, pockets, holes, and contours.

3-axis machining centers portfolio

Mehr erfahren

5 axis Milling

MILL S/X (U) series

High-speed 3- and 5-axis milling for precision and outstanding surface finish.

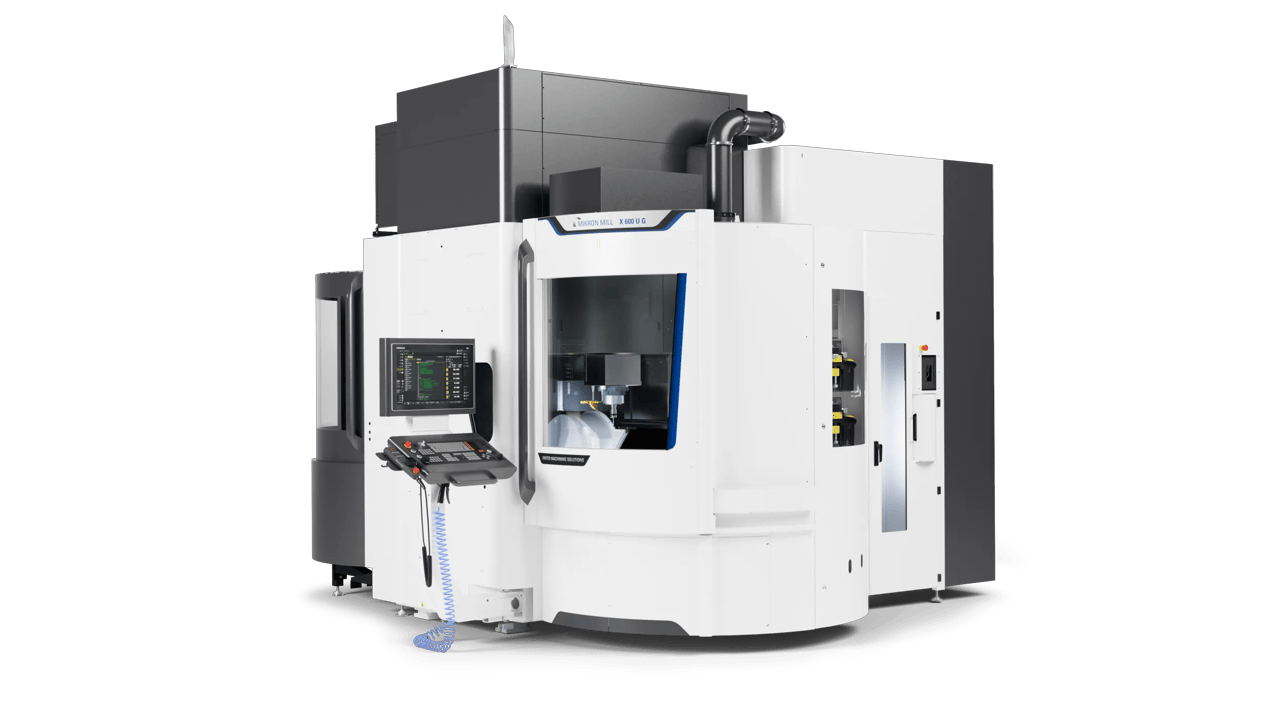

mikron-mill-mill-x-600-u-g-atc-wpc-front

Mehr erfahren

3 axis Milling

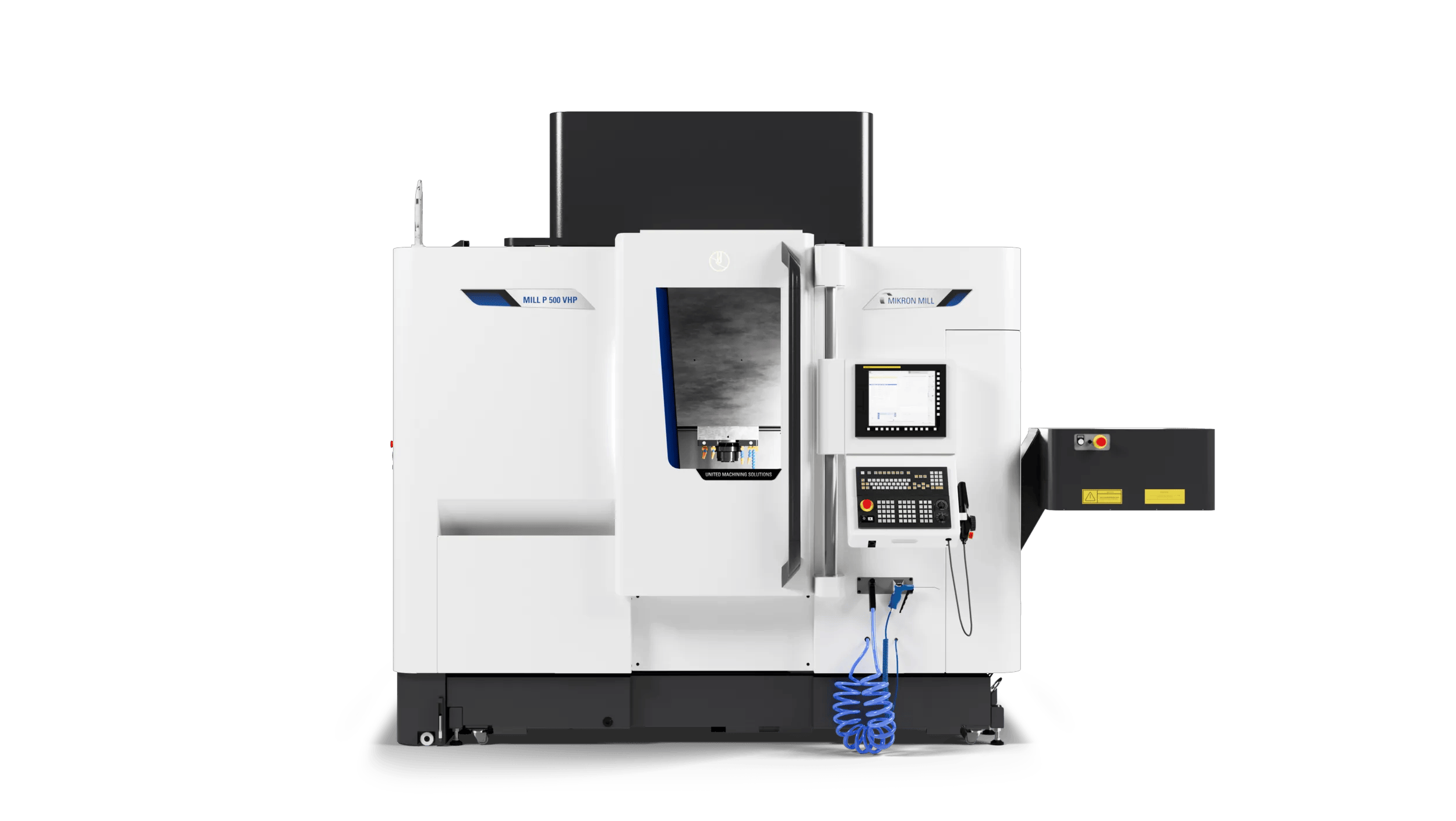

MILL P 500 VHP

3-axis micromachining with active cooling for ultra-fine accuracy and stability.

Mehr erfahren

3 axis Milling

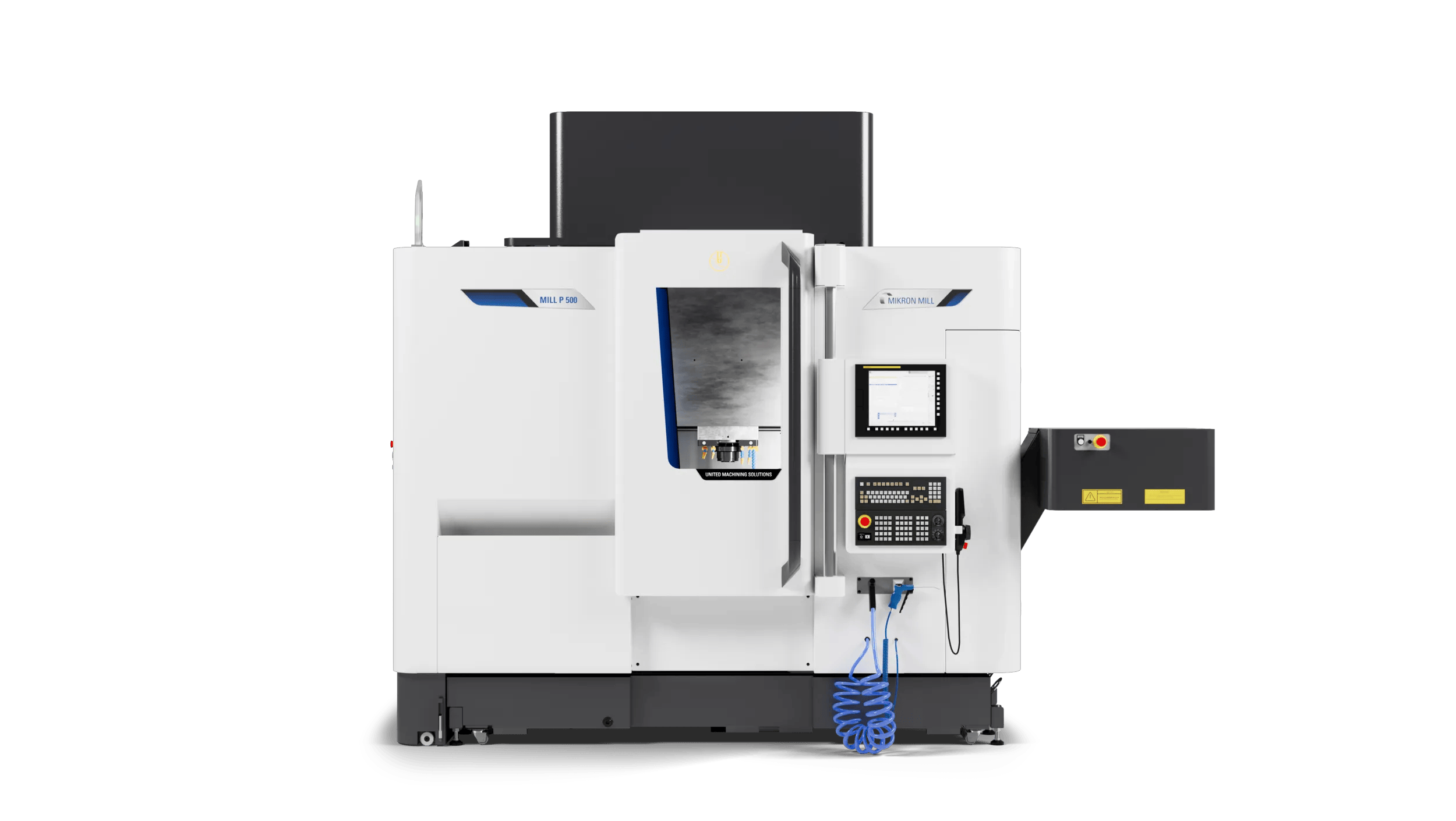

MILL P series

Reliable 3-axis milling with exceptional performance for demanding applications.

Explore the full 3-axis range

Machining centers overview

Our range of 3-axis machining centers

X travel 350 – 400
Machine	Max. table load (kg)	X/Y/Z (mm)
MILL X 400	120	500 x 450 x 360
MILL S 500	200	500 x 450 x 360
HSM 500 (Graphite)	200	500 x 450 x 350
MILL P 500	300	500 x 450 x 350
MILL S 600	500	600 x 600 x 500

X travel 350 – 400
Machine	Max. table load (kg)	X/Y/Z (mm)
VCE 600 Pro	800	600 x 500 x 540
MILL E 800	1000	850 x 600 x 600
MILL P 900	1000	900 x 600 x 450
MILL S 800	1000	800 x 600 x 500
VCE 800 Pro	1100	800 x 500 x 540
VCE 1000 Pro	1350	1020 x 560 x 600
MILL E 1200	1500	1250 x 600 x 600

X travel 350 – 400
Machine	Max. table load (kg)	X/Y/Z (mm)
VCE 1200 Pro	1700	1200 x 600 x 675
VCE 1400 Pro	1700	1400 x 650 x 675
VCE 1600 Pro	2000	1600 x 900 x 800
VCE 2000 Pro	3000	2000 x 900 x 800

3-Axis Milling

Main competitive advantages

Active cooling

The intelligent active cooling system circulates temperature-controlled fluid across all key machine components, eliminating thermal drift and ensuring consistent accuracy throughout even the longest production runs.

Polymer concrete

With up to six times better vibration damping than cast iron, our polymer concrete machine base provides exceptional rigidity and thermal stability, delivering lasting accuracy even under the highest cutting forces and most demanding milling conditions.

Smart machine

A modular suite of intelligent modules, including OSS, ITC, ISM, and PFP, optimizes dynamic behavior, compensates for thermal displacement, monitors spindle health, and protects the machine during unmanned operation.

Automation ready

Fully compatible with SYSTEM 3R and third-party automation systems, our MIKRON MILL 3-axis machining center is designed to scale from a simple tool magazine to a fully automated production cell.
