MILL P

Precision in every detail, accuracy in every move

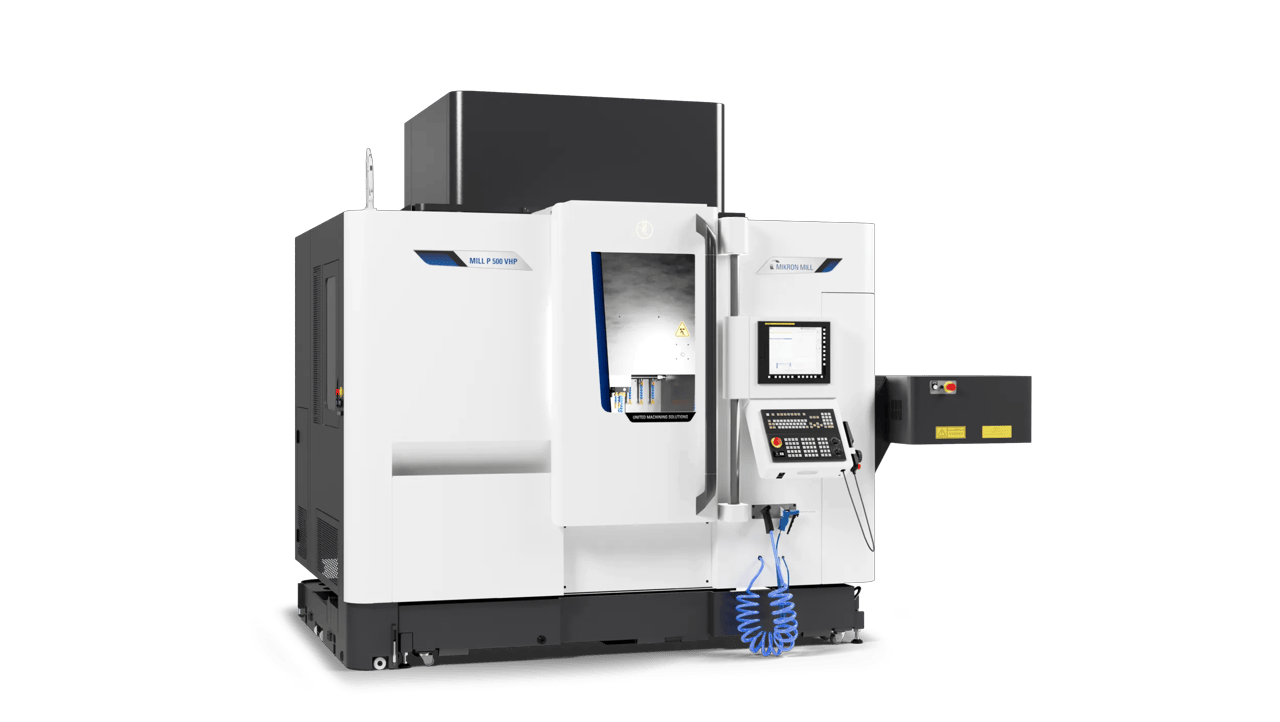

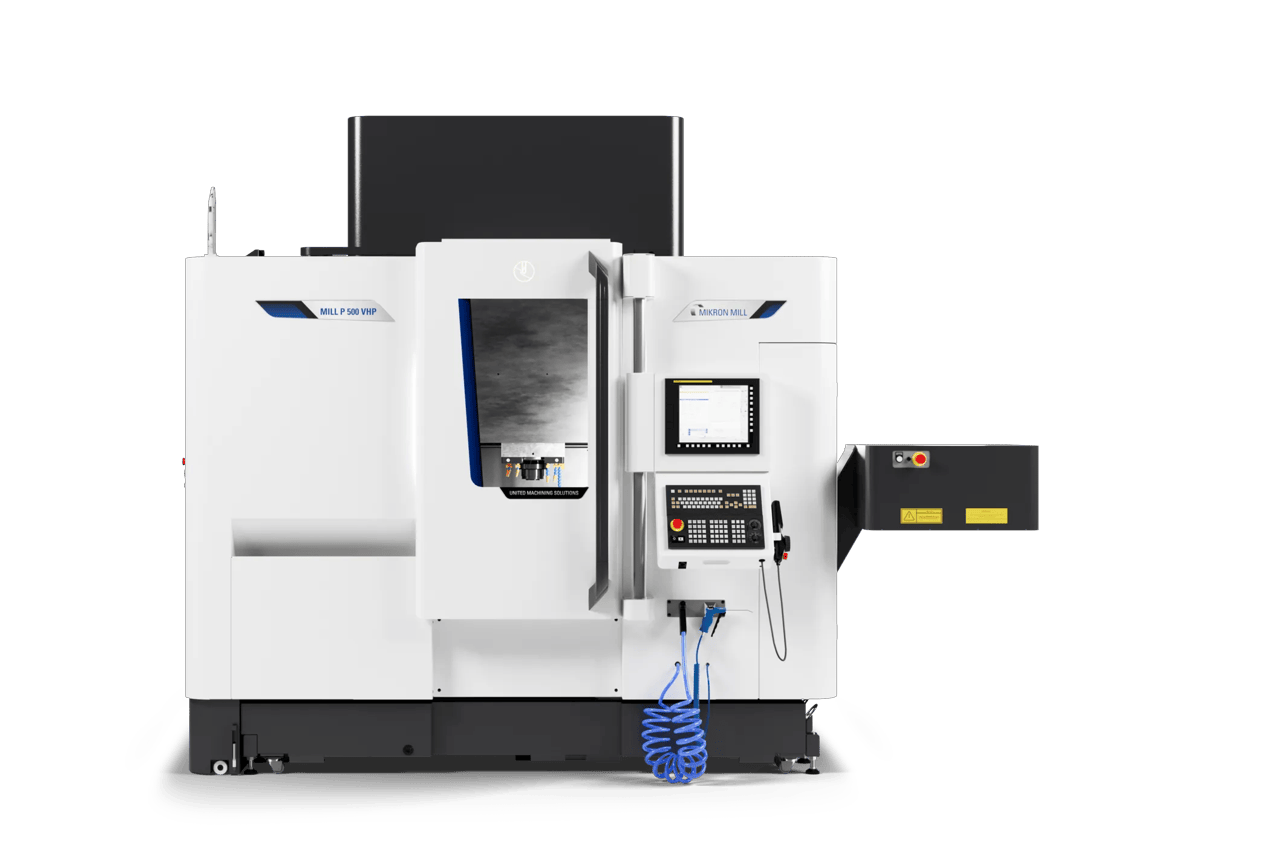

The MIKRON MILL P 500 VHP is a very high precision machining center designed for manufacturers who demand exceptional surface finishes and consistent accuracy over long production runs. From intricate medical cavities to complex automotive molds and fuel cell dies, it delivers repeatable micromachining performance, cycle after cycle.

Milling

Highlights

Backlash-free motion

Linear motors deliver backlash-free positioning with high dynamic response, minimizing vibration and mechanical play for ultrafine surface finishes and contour accuracy down to the micron level.

Thermal stability

A symmetrical bridge-type structure combined with a fully internal active cooling system prevents thermal drift in all directions, ensuring consistent accuracy throughout long micromachining cycles.

Ergonomic design

A pivoting control console, easy access to the tool changer, and excellent visibility of the working area support efficient daily operations, reducing setup time and keeping operators focused on value-added tasks.

Automation ready

Compatible with the Delphin pallet system and tool magazines up to 60 positions, the MILL P 500 VHP is designed for lights-out production, with full front access for the operator and automation integrated from the back.

Speak to an expert

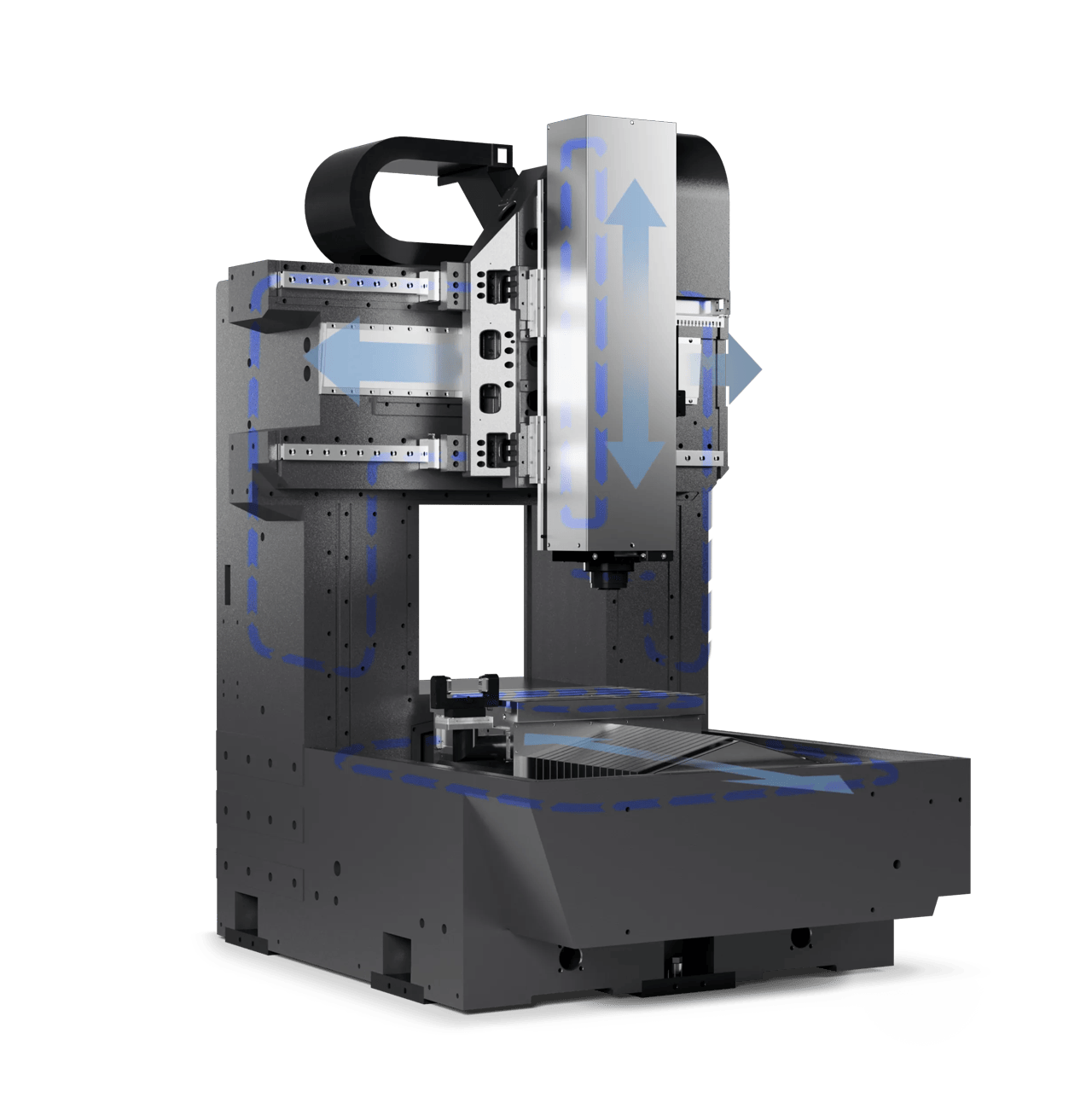

Intelligent active cooling system

The MIKRON MILL P 500 VHP’s active internal cooling system (Ambient Robust technology) circulates temperature-controlled fluid, ensuring precise thermal management. This enables consistent accuracy and stability throughout long micromachining cycles.

The MIKRON MILL P 500 VHP features thermal insulation housing that isolates it from external temperature fluctuations, ensuring optimal thermal stability and consistent precision during operation.

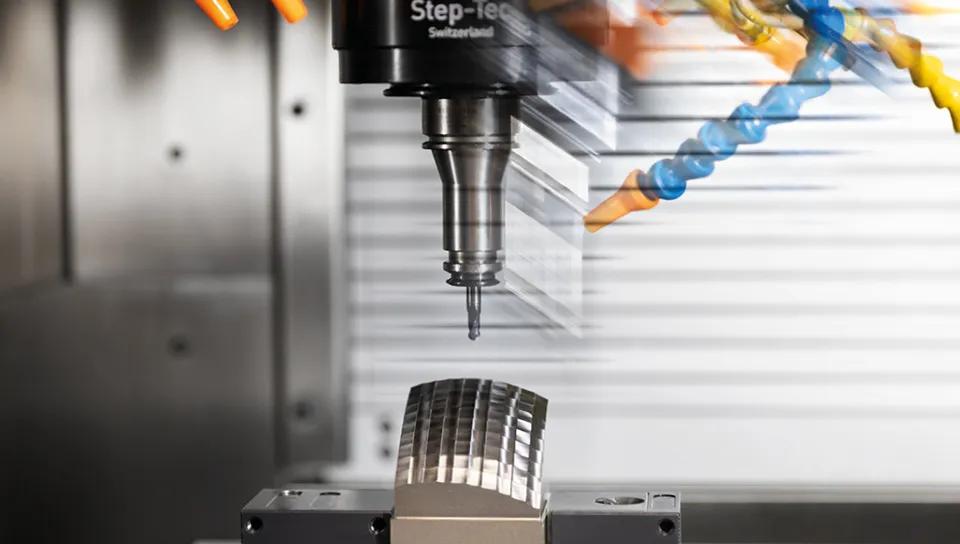

Dynamic motion

Equipped with high-performance linear motors, the MILL P 500 VHP delivers backlash-free motion with a travel speed of 30 m/min and an acceleration of 5 m/s², combining the dynamics needed for short cycle times with the accuracy required for the most demanding micromachining applications.

High-quality Spindle

The MILL P 500 VHP is equipped with a high-speed STEP TEC spindle at 42,000 min⁻¹ with HSK-E40 interface, specifically engineered for ultraprecise micromachining. Advanced thermal design and premium components ensure stable, vibration-free operation at high speeds, delivering mirror surface finishes and repeatable accuracy across every cycle and every material.

The heart of every MIKRON MILL machine.

Discover the technology that makes it possible.

Learn more about STEP TEC

Applications

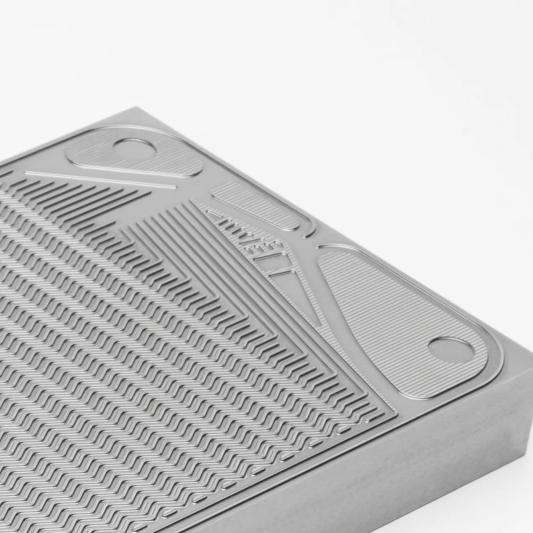

Automotive – Bipolar plates

Material: S136 HRC 58-62
Machining time: 146 h
Surface finish: Ra < 0.07 µm
Suface flatness: < 3 µm
Overall accuracy: ± 2 µm

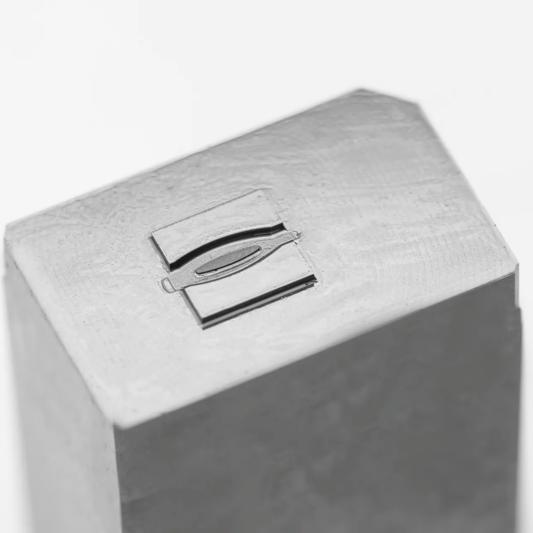

Electronic – Connector insert

Medical – Face mask

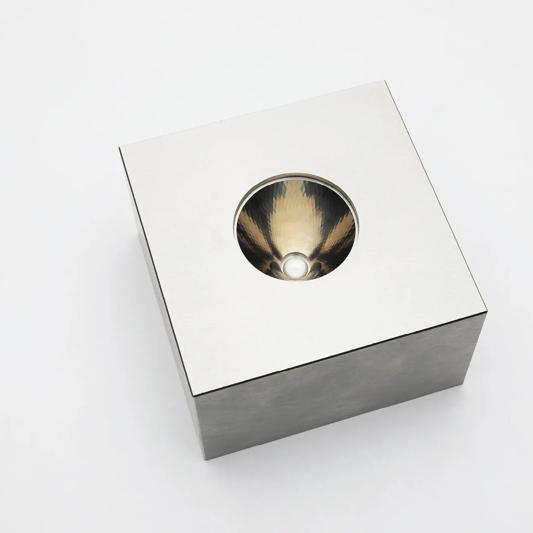

Home appliance – Reflector mold

Automation Solutions

The MILL P 500 VHP is designed for automation from the ground up, delivering parts faster while keeping the operator fully focused on value-added tasks.

Integrated tool magazine: available in 30 or 60-tool configurations, with parallel machining and tool loading for uninterrupted production.
Pallet automation: compatible with the Delphin pallet system (400 x 400 mm).
Rear automation connectivity: full front access for the operator, while automation is seamlessly integrated from the back, minimizing footprint and maximizing ergonomics.

Specifications

Einheiten

kg / cmlb / Zoll

MILL P 500 VHP

Travel X, Y, Z: 500 x 450 x 350 mm
Feed rate X/Y/Z: 30 m/min
Working table: T-slot table 620 x 500 mm
Table load: 300 kg
Spindle: 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Tool magazine: 30 / 60 pockets

Downloads

MIKRON MILL 500 VHP Brochure

PDF

Customer Care

From installation to daily production, MIKRON MILL Customer Care keeps your machines running — with genuine original parts, expert repairs, maintenance contracts, and operator training, all from a single point of contact.

Contact Support
