MIKRON MILL

MILL P

series

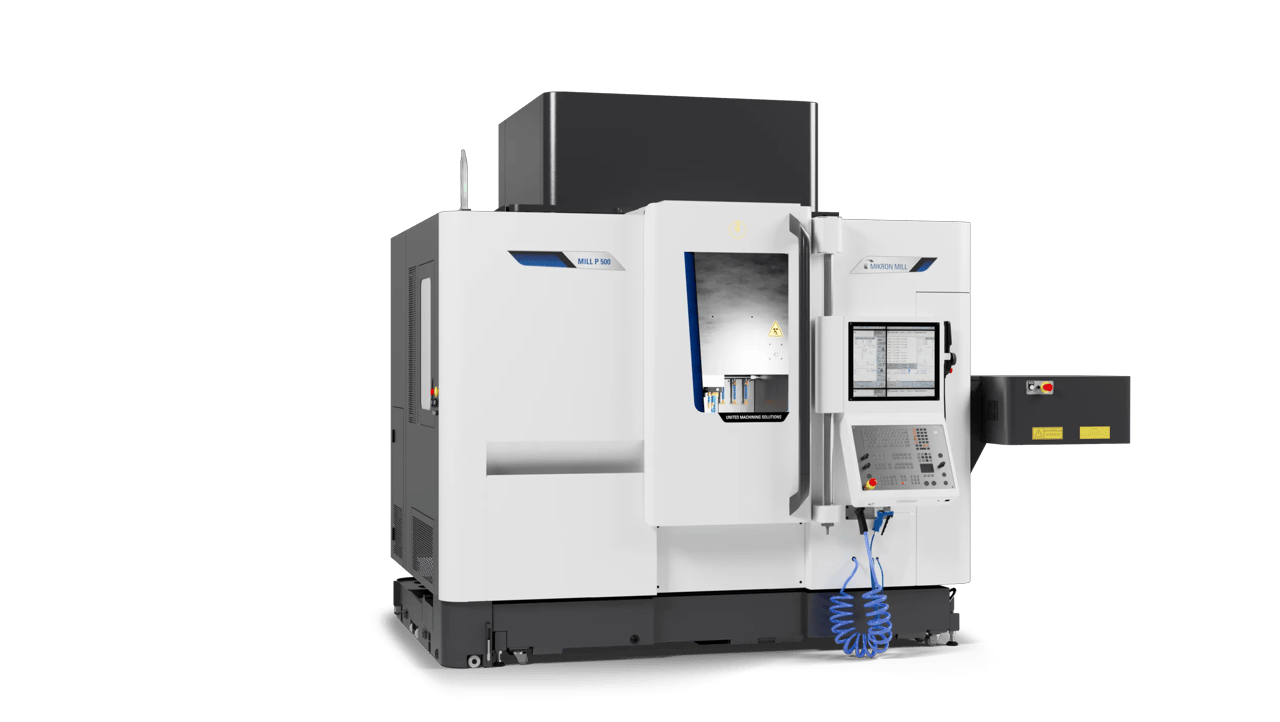

mikron-mill-mill-p-500-heidenhain-side

Powerful and reliable

The MIKRON MILL P Series delivers high-performance milling for mold and die producers across ICT, automotive, medical, and consumer goods industries. Built around a robust portal structure, polymer concrete base, and advanced thermal management, both the MILL P 500 and MILL P 900 combine outstanding precision, superior surface quality, and automation-ready design, for reliable, high-throughput production all day, every day.

3-AXIS MILLING

Highlights

Roughing and finishing

The MILL P Series handles the full range, from aggressive material removal to fine surface finishing, on a single machining center, eliminating additional setups and significantly reducing time to market.

Thermal stability

A fully thermostabilized machine body, including spindle, drive motors, axis cooling, and table cooling loop, ensures consistent accuracy and reproducibility throughout long production cycles and demanding milling conditions.

Polymer concrete

Built around a polymer concrete machine base that significantly outperforms cast iron in rigidity and damping behavior, providing a reliable foundation for precision even under high cutting forces and hard milling conditions.

Automation ready

With tool magazine options up to 170 positions and pallet automation integrated from the back, every MILL P machining center is designed to maximize uptime and keep operators focused on value-added tasks.

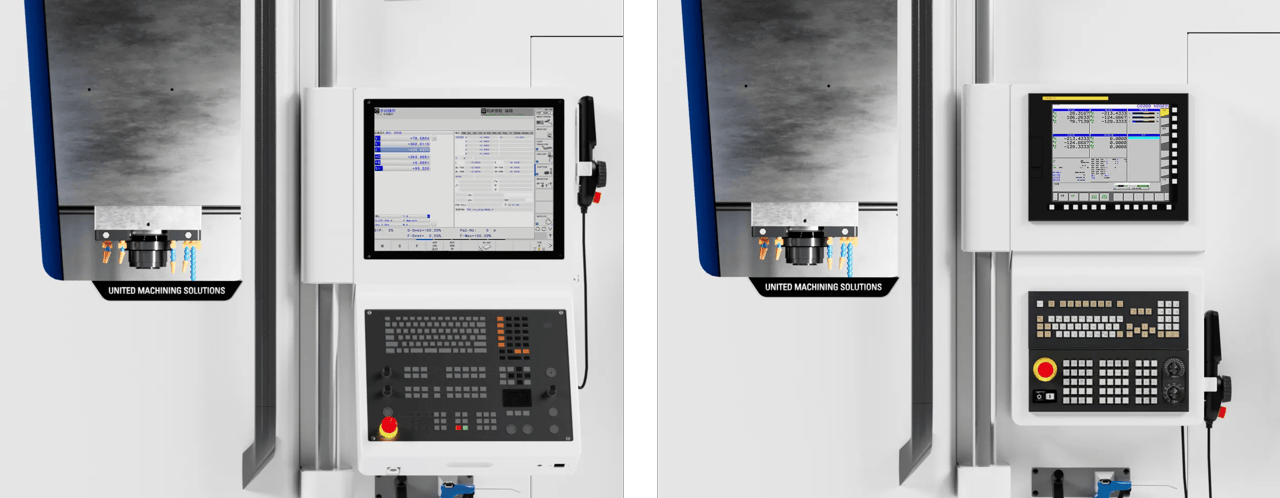

Numerical Control

The MILL P Series is available with HEIDENHAIN TNC 640 (Gen.3) or FANUC FS31iB controls, combining intuitive interfaces with advanced smart machine modules including OSS, ISM, ITC, Econowatt, and Power Fail Protection for optimized, unattended production.

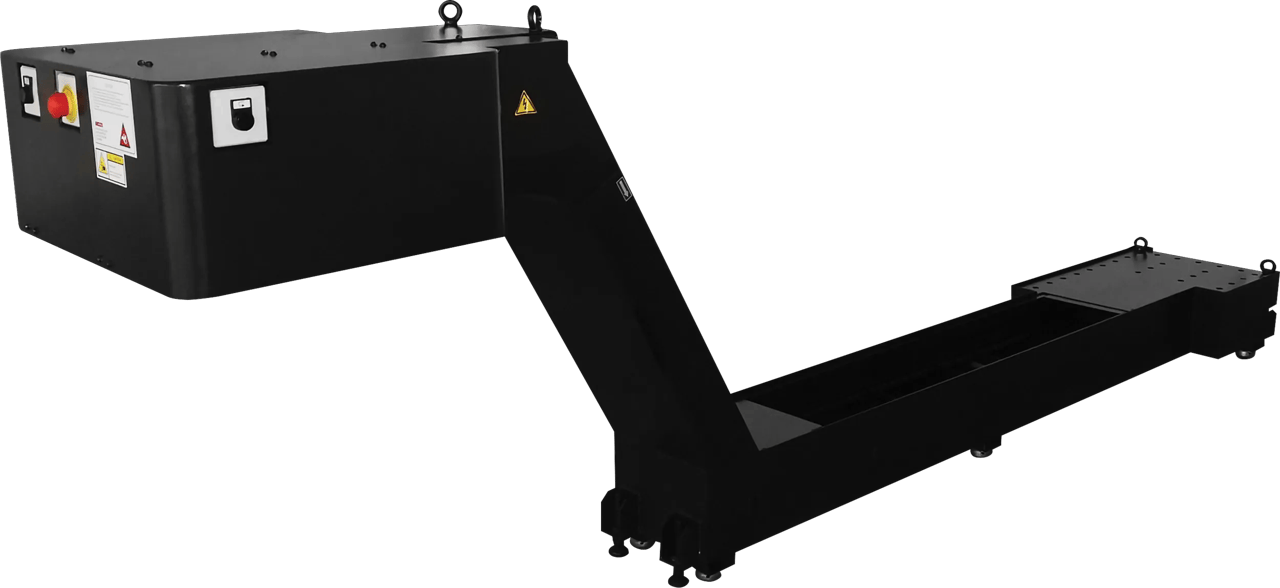

Chip Management

Designed for uninterrupted productivity, the MILL P Series features steep enclosure walls that optimize chip flow, wash-down nozzles that prevent accumulation in every corner, and heavy-duty chip augers built to handle high volumes of both aluminum and steel chips, keeping the working area clean and the machine running.

High-quality Spindle

The MILL P Series is equipped with high-speed STEP TEC spindles available in a range from 20,000 to 42,000 min⁻¹, covering the full spectrum of mold and die requirements, from heavy roughing to mirror surface finishing. Advanced bearing design, integrated sensors, and through-spindle cooling ensure precise, vibration-free operation across every cycle and every material.

step-tec-spindle-hero
The heart of every MIKRON MILL machine.

Discover the technology that makes it possible.

Learn more about STEP TEC

Applications

  • Material: HRC52
  • Dimension: 93 x 75 x 60 mm
  • Machining time: 50 h
  • Surface finish: Ra < 0.1 µm
  • Contour accuracy: ± 0.01 mm

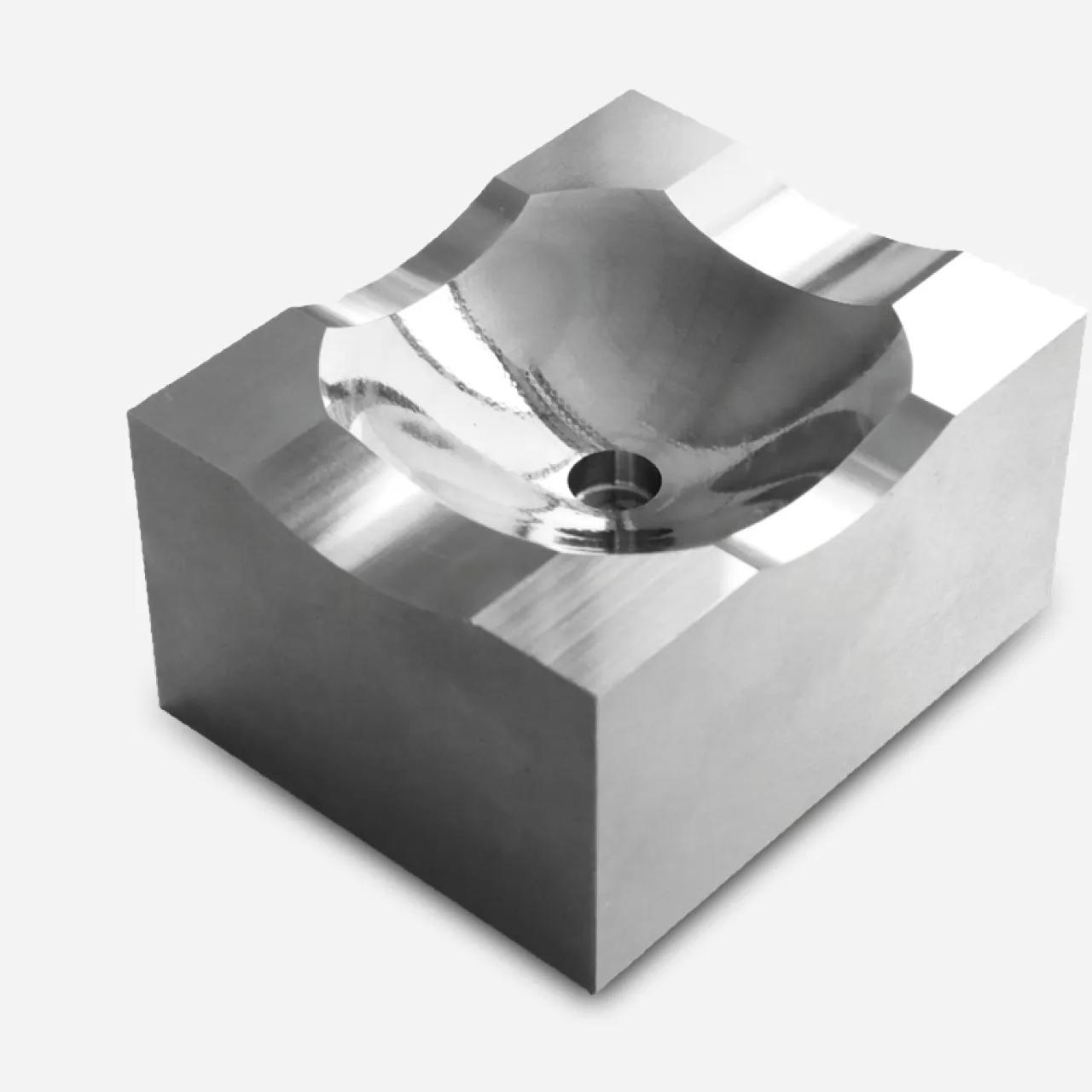

headlight-mold-application
headlight-mold-application

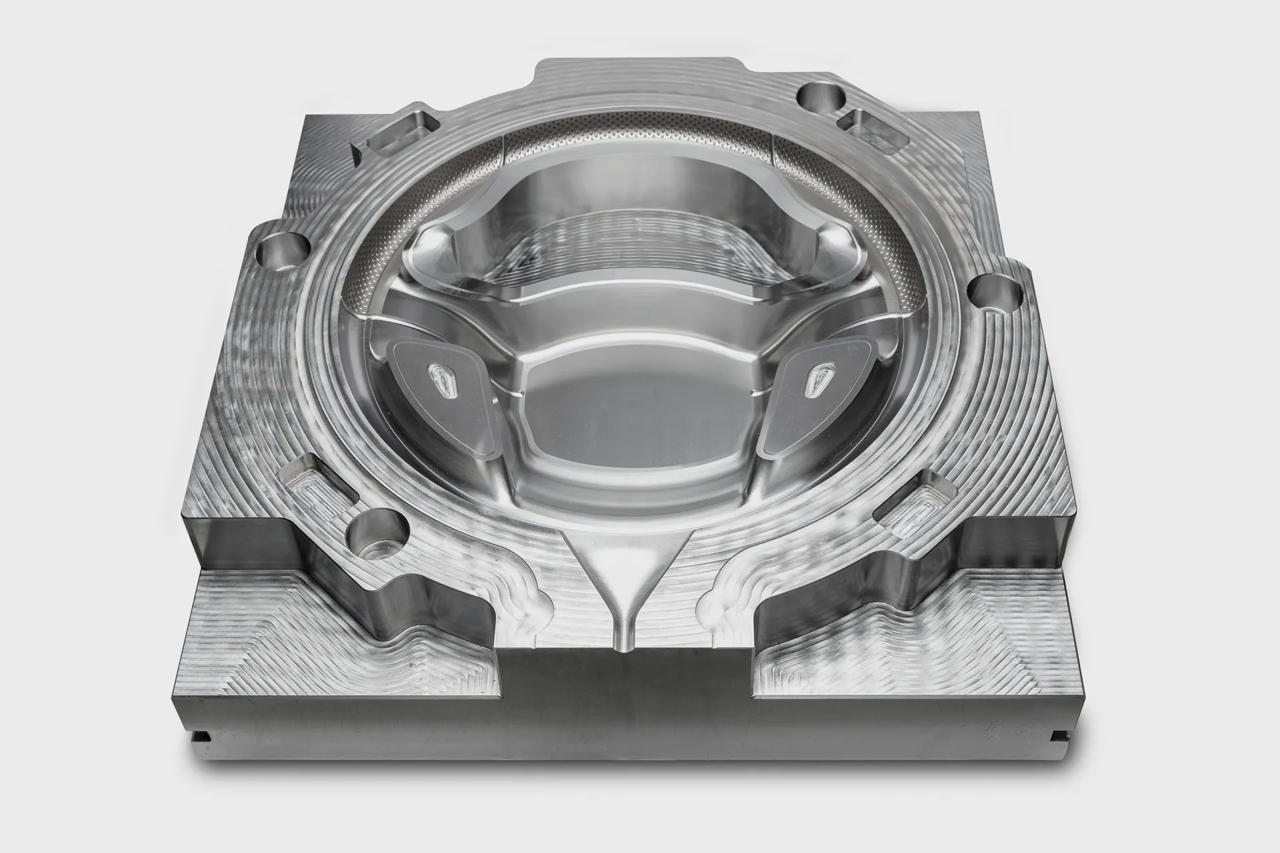

charmilles-steering-wheel-list-item-3-texturing

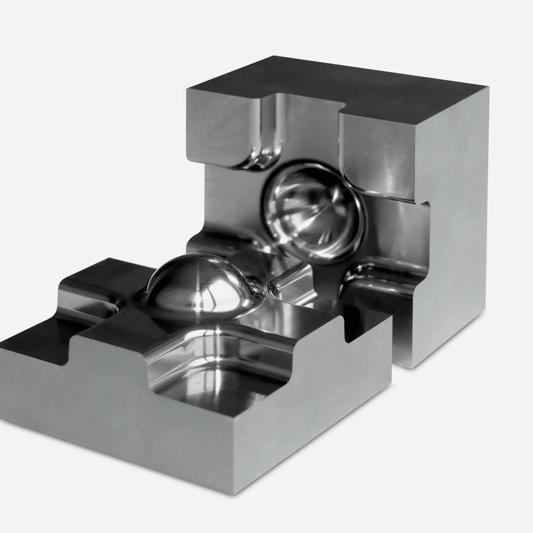

test-mold-application

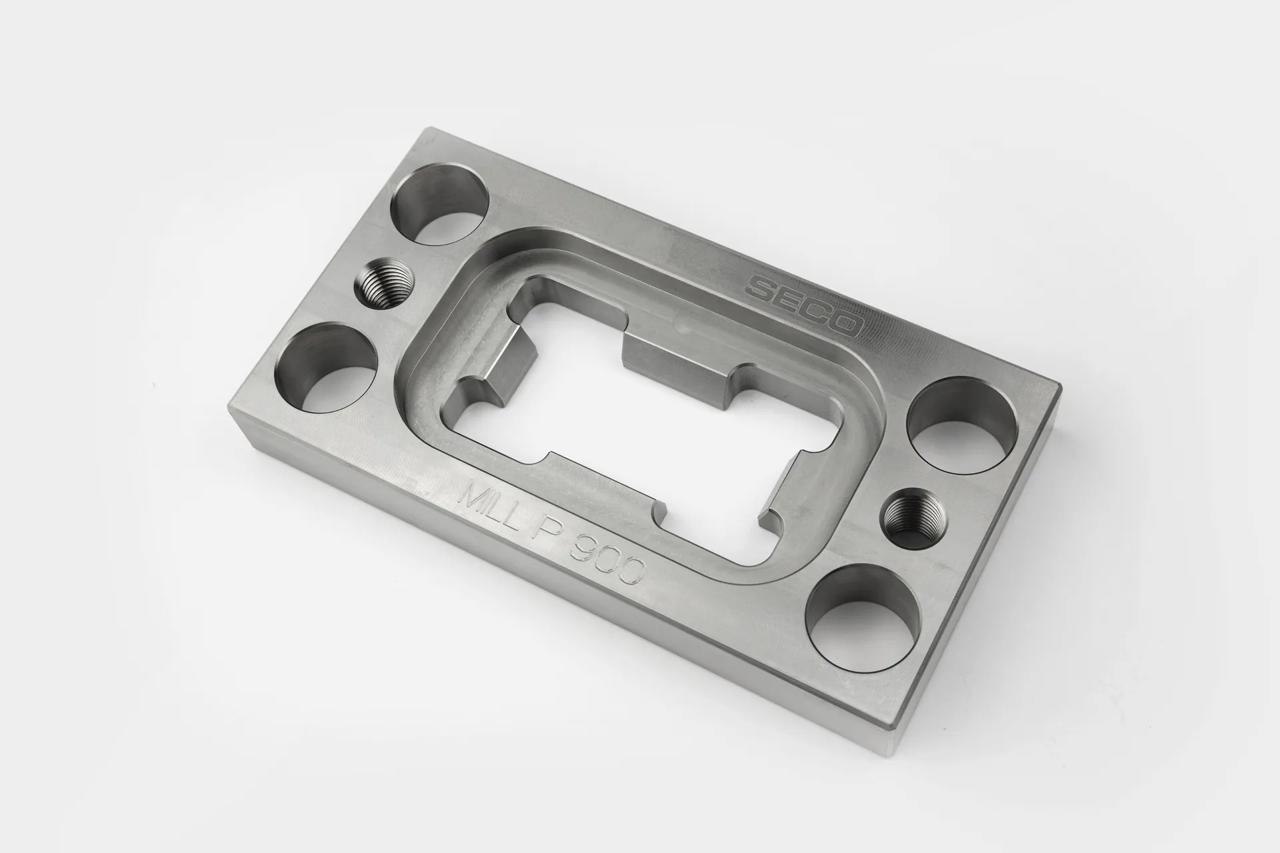

stamping-plate-application

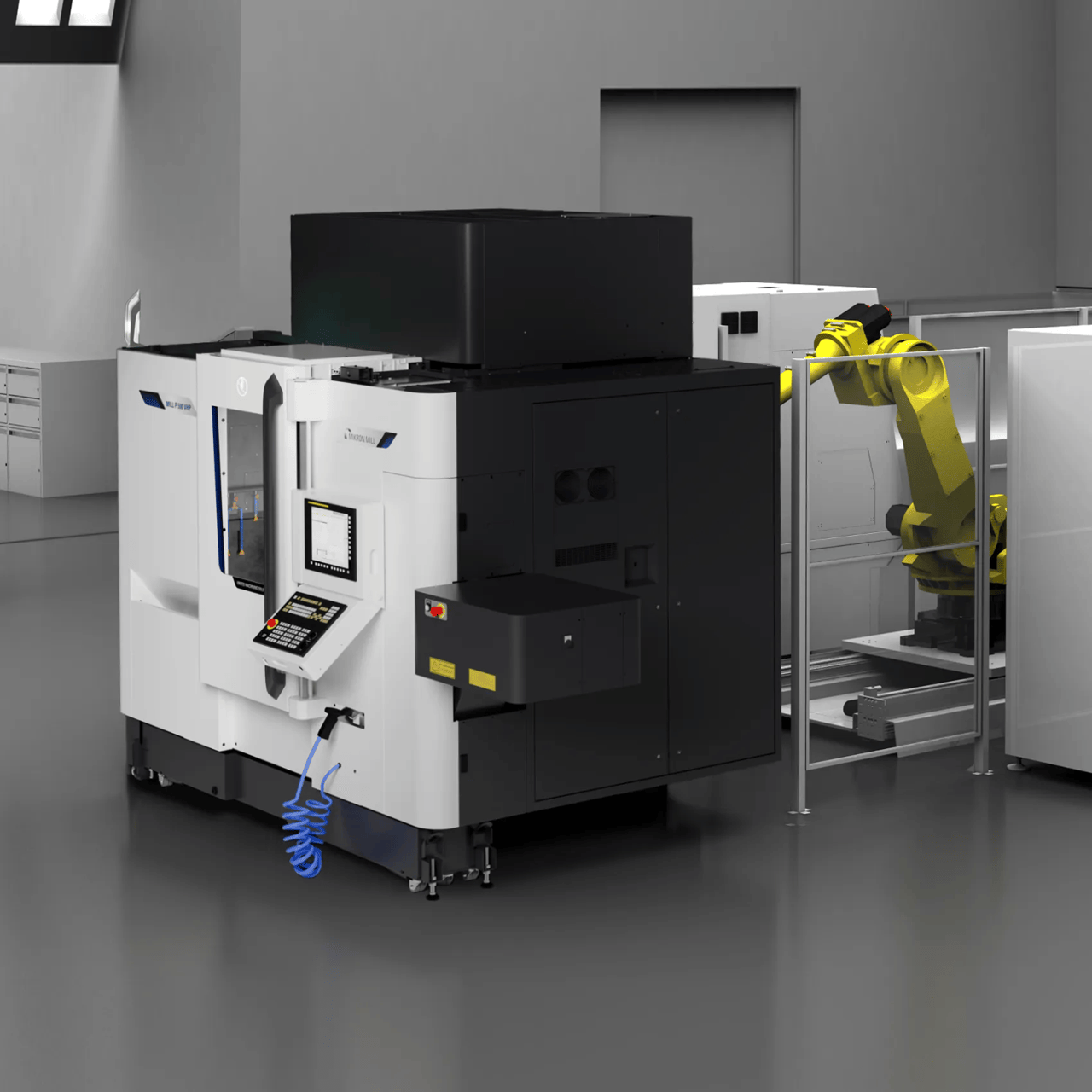

Automation Solutions

The MILL P Series is designed for automation from the ground up, delivering parts faster while keeping operators fully focused on value-added tasks.

  • Tool magazine: available in disc-type, chain, or tower configurations with up to 170 tool positions, supporting parallel machining and tool loading for uninterrupted production.
  • Pallet automation: compatible with the Delphin pallet system (400 x 400 mm), supporting up to 5 pallets and 200 kg additional load, managed directly from the machine control.
  • Rear automation connectivity: full front access for the operator, with automation seamlessly integrated from the back to minimize footprint and maximize ergonomics.

Specifications

Einheiten
Model

MILL P 500

Travel X, Y, Z
500 x 450 x 350 mm
Feed rate X/Y/Z
30 m/min
Working table
T-slot table 600 x 500 mm
Table load
300 kg
Spindle
24,000 (HSK-A63) / 30 / 30 rpm/kW/Nm or 36,000 (HSK-E50) / 33 / 21.3 rpm/kW/Nm or 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm
Tool magazine
30 / 60 pockets
