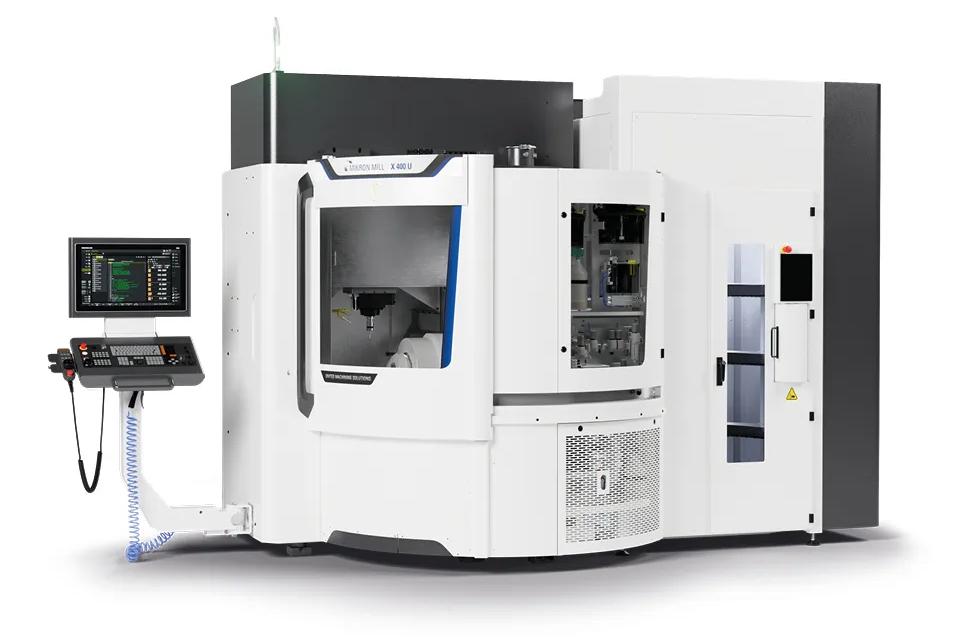

The most compact and dynamic machining center
The MIKRON MILL S/X series is the reference in high-speed milling, delivering outstanding precision, surface quality, and dynamics for the most demanding production environments. Ergonomic, automation-ready, and built for the most challenging applications in aerospace, medical and mold making.
Milling
Highlights

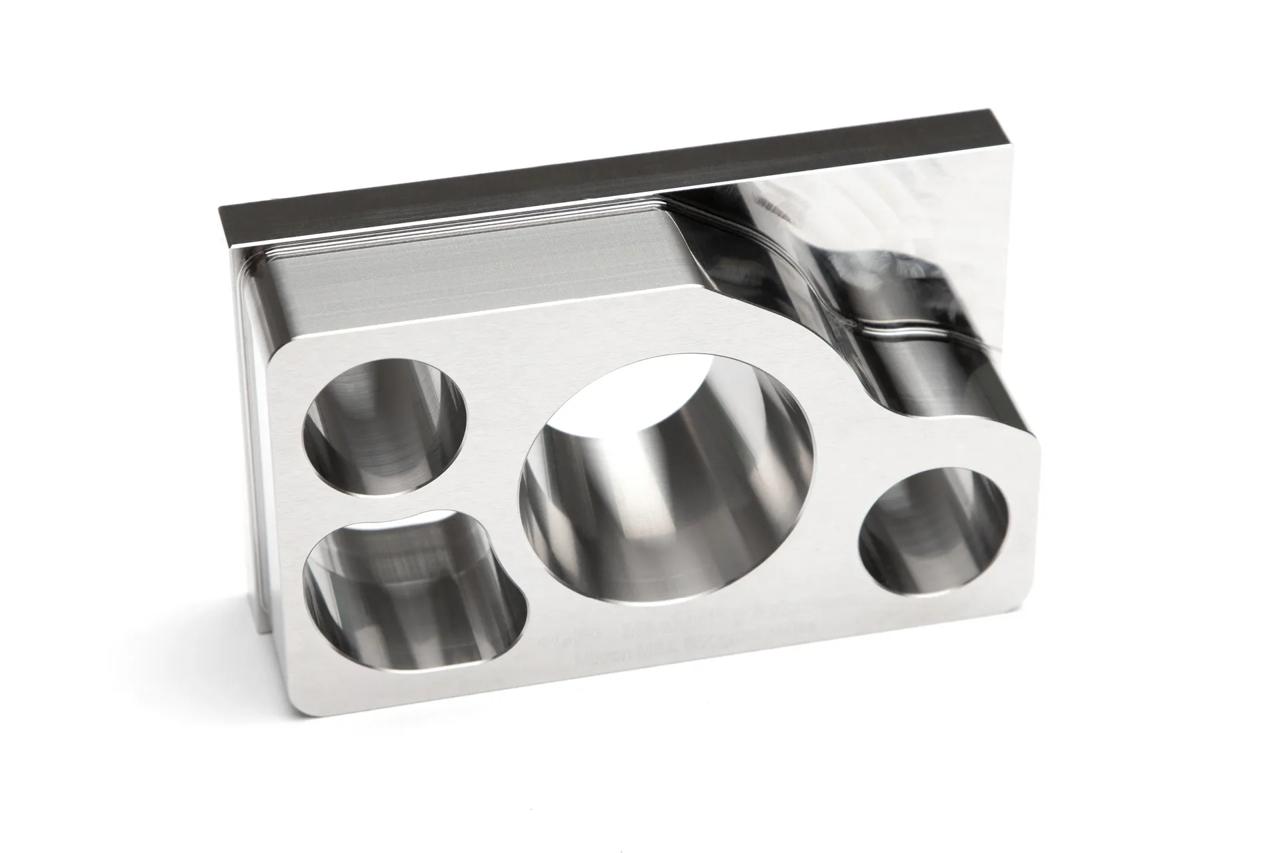

Two-in-one solution

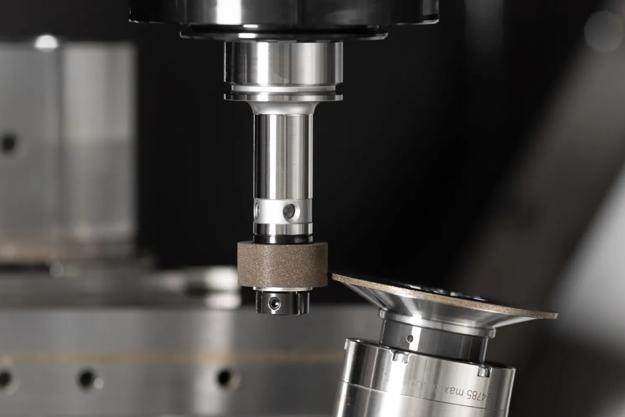

The MILL S/X U series uniquely combines milling and jig grinding on the same machining center. The grinding setup is designed to maintain standard workpiece dimensions and clamping surfaces, even in automated configurations, while a dressing spindle with acoustic emission sensor ensures process reliability and grinding tool efficiency. The result is a significantly reduced manufacturing process, faster ROI, and consistently high-end part quality.

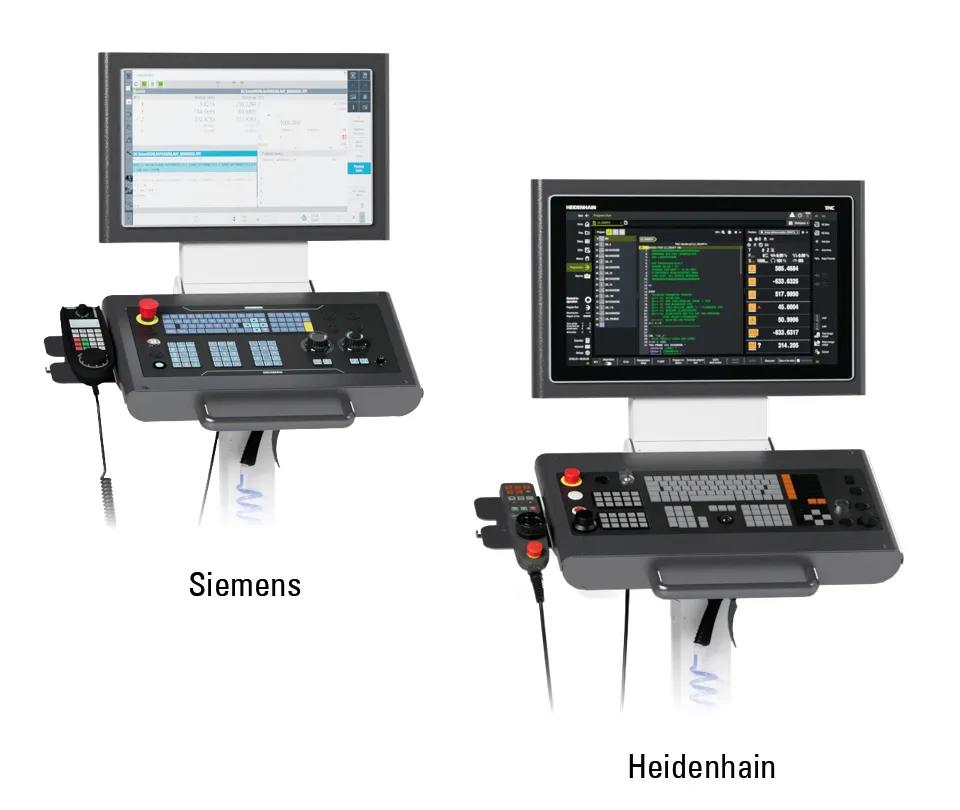

Boosted numerical control
The MIKRON MILL S and X series can be equipped with either the Heidenhain TNC 7 or the Siemens Sinumerik ONE control system. Both HMIs are enhanced by an internally developed and patented Smart Machine modules, designed to boost productivity and elevate machining performance to the next level.

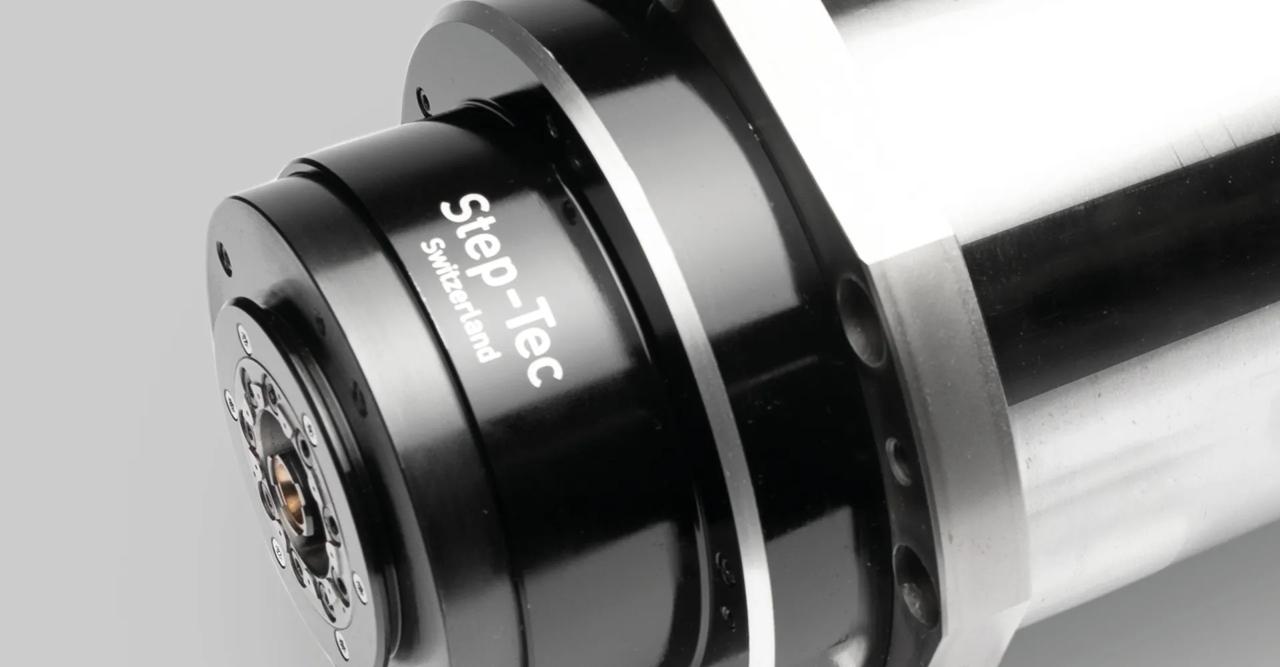

High-quality Spindle
The MILL S/X series is equipped with high-speed STEP TEC spindles available in a range from 24,000 to 50,000 min⁻¹, covering the full spectrum of milling requirements from high-torque roughing to fine finishing.
Advanced thermal management ensures stable, vibration-free operation at high speeds, delivering exceptional surface quality and repeatable accuracy across every cycle and every material.
The heart of every MIKRON MILL machine.
Discover the technology that makes it possible.

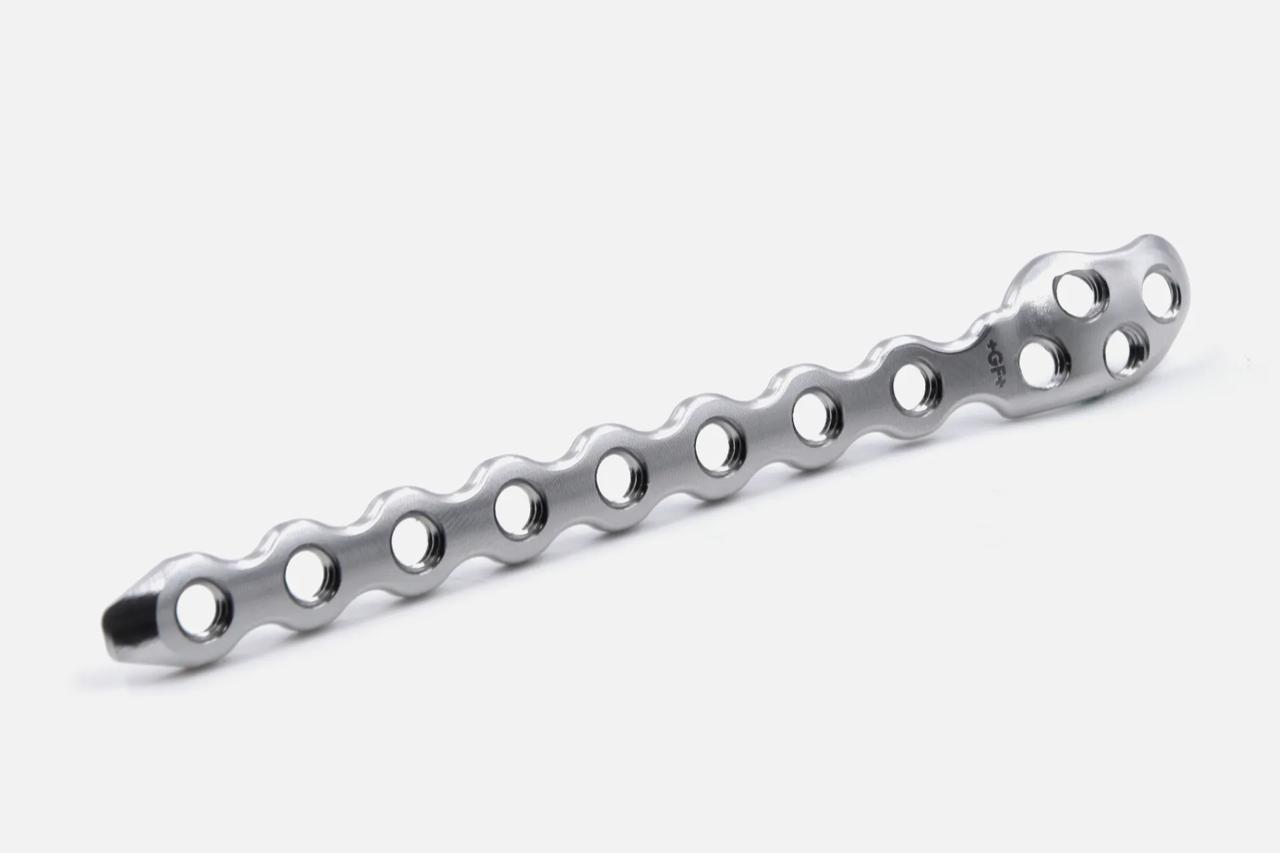

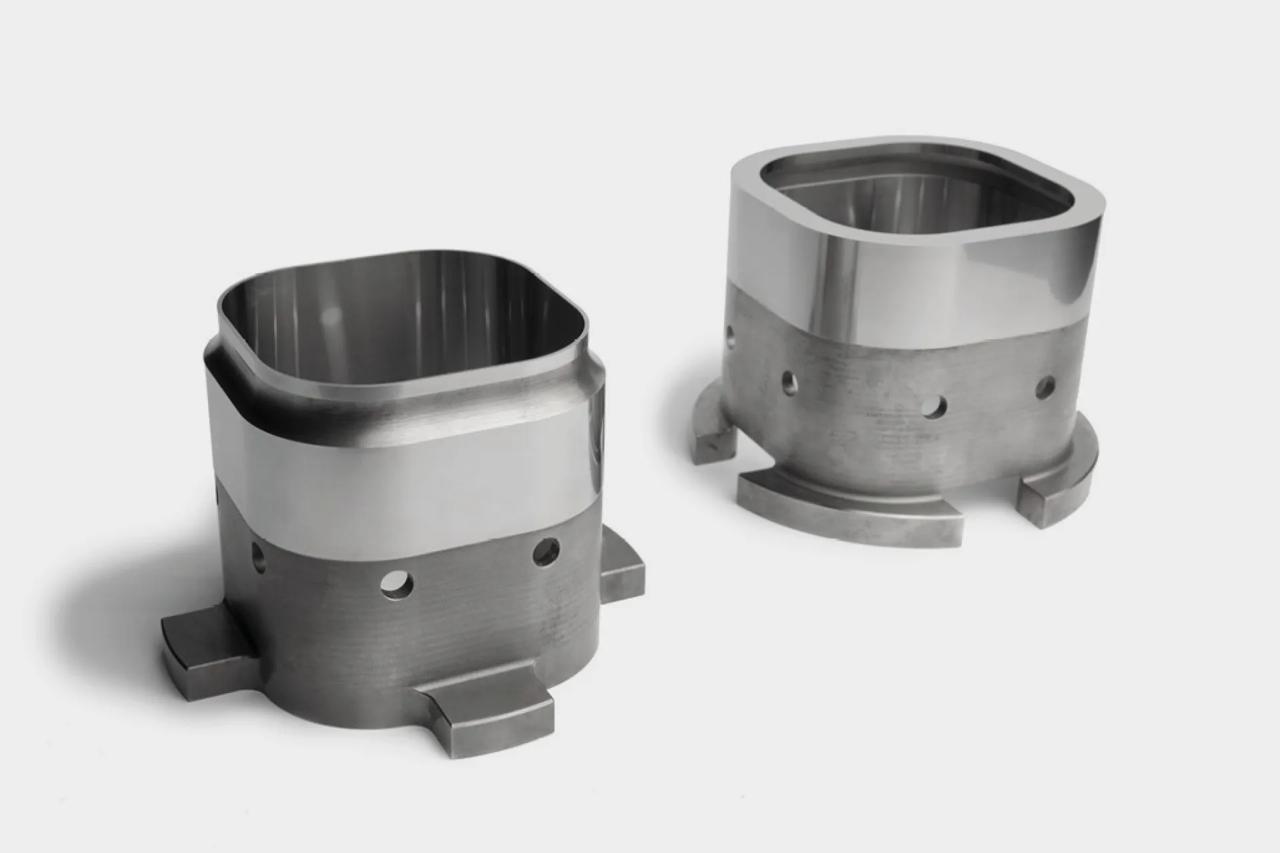

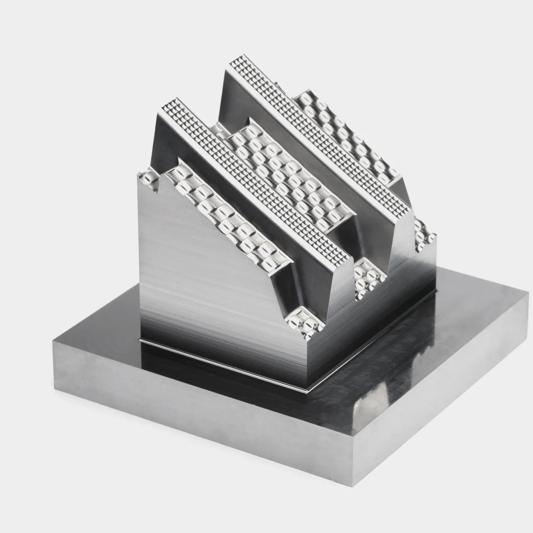

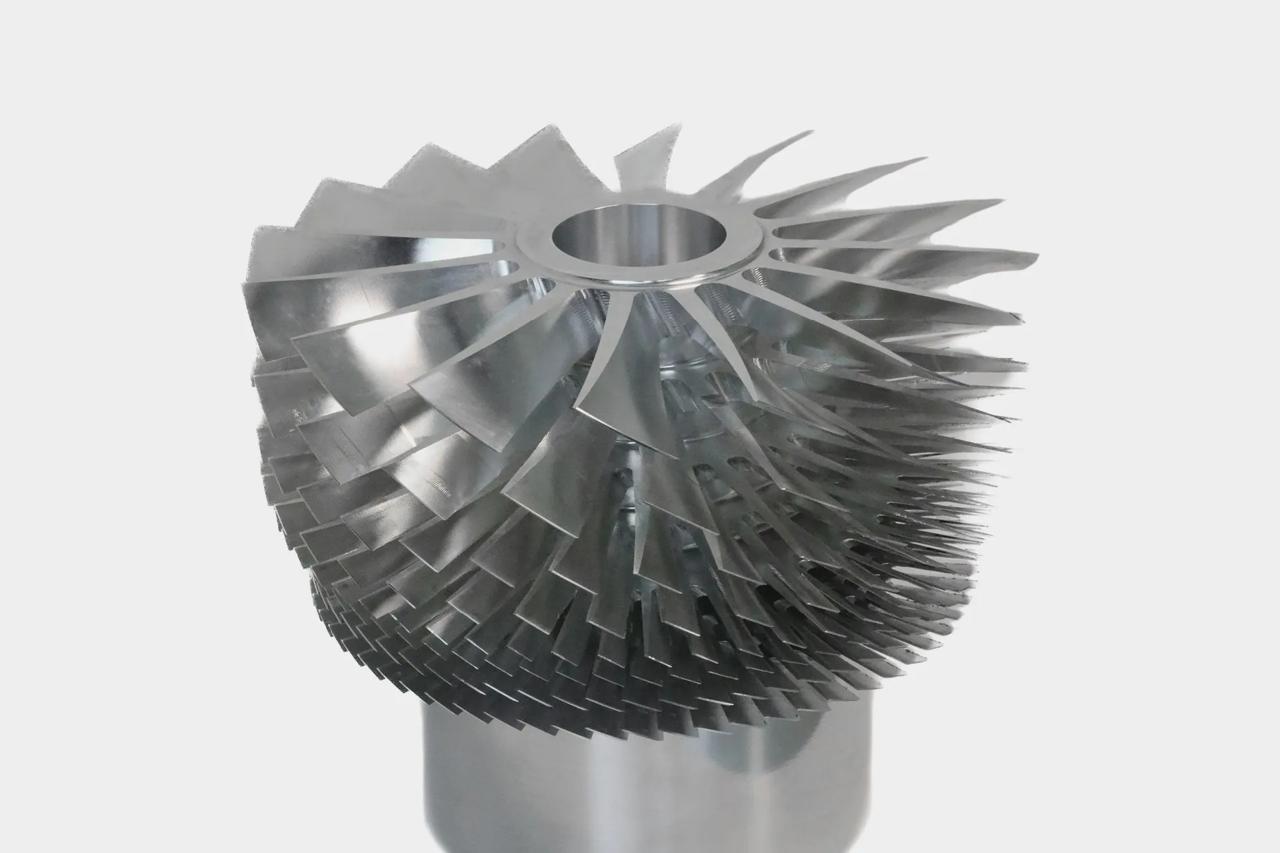

Applications
- Material: Aluminium
- Machining time: < 19 h
- Surface finish: Ra < 0.1 µm
- Accuracy: ± 0.1 mm

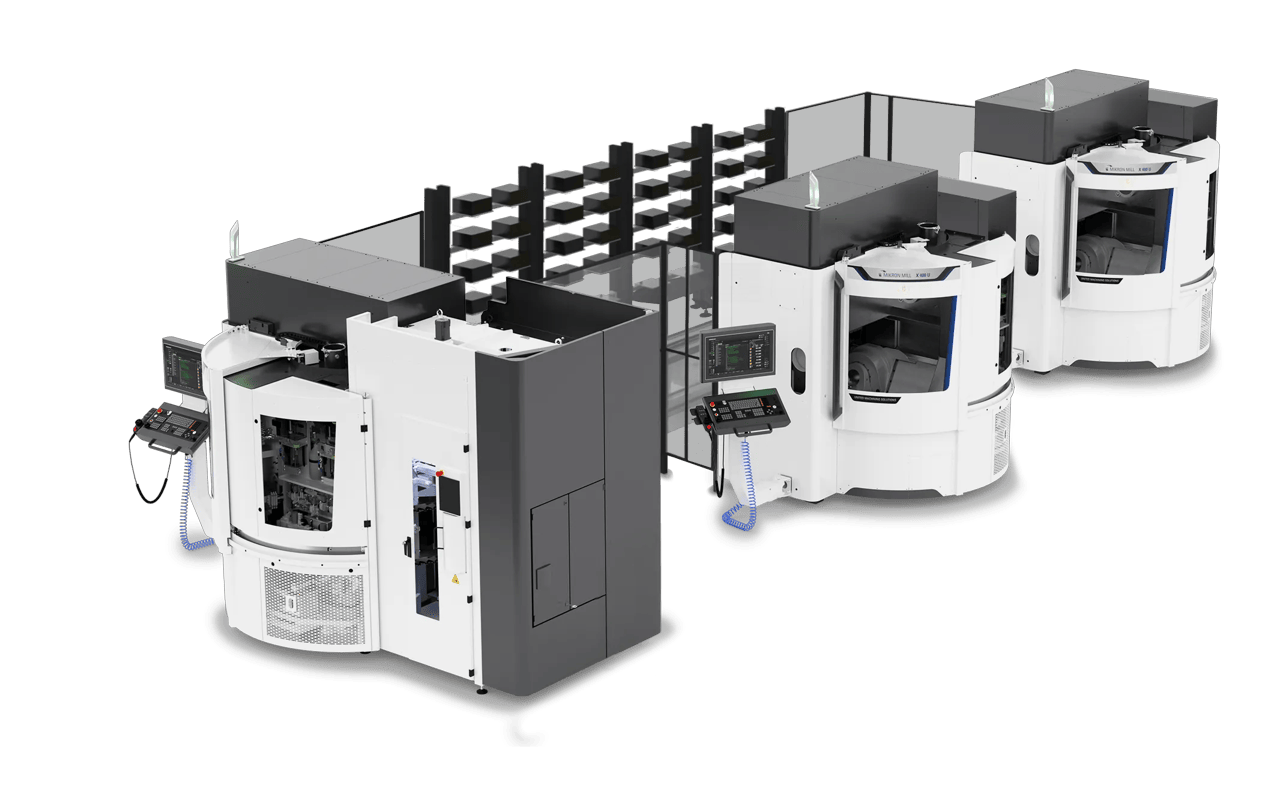

Automation Solutions
Designed for automation from the ground up, the MILL S/X series integrates seamlessly with a wide range of pallet systems, including SYSTEM 3R Dynafix, Erowa UPC, and System 3R MacroMagnum, in disc-type magazine configurations. The JobToolManager (JTM) software allows operators to assign NC programs by drag and drop, manage job priorities in real time, and monitor estimated machining times, keeping production running with minimal intervention. Tool magazines are available from 48 up to 220 positions depending on spindle configuration.
Specifications
Model
Main specifications
- Travel X, Y, Z
- 160 x 160 x 200 mm
- Swiveling range
- +30° / -120°
- Rotary range
- n x 360°
- Rapid traverse X,Y,Z
- 42 m/min
- Rapid traverse: Swiveling / Rotating
- 150 / 220 rpm
- Spindle
- 50,000 (HSK-E32) / 8.5 / 3.4 rpm/kW/Nm
- Pallet/clamping surface
- GPS 120 / ITS 148 / Macro Magnum 156 / Macro 54
- Max. load (incl. pallet)
- 8 kg
- Tool magazine
- 30/60/150 (HSK-E32)
- Machine weight
- 3,600 kg
- Control unit
- TNC 640 (Heidenhain)
Downloads
Customer Care
From installation to daily production, MIKRON MILL Customer Care keeps your machines running — with genuine original parts, expert repairs, maintenance contracts, and operator training, all from a single point of contact.
