Robust, modular, and ready for anything.

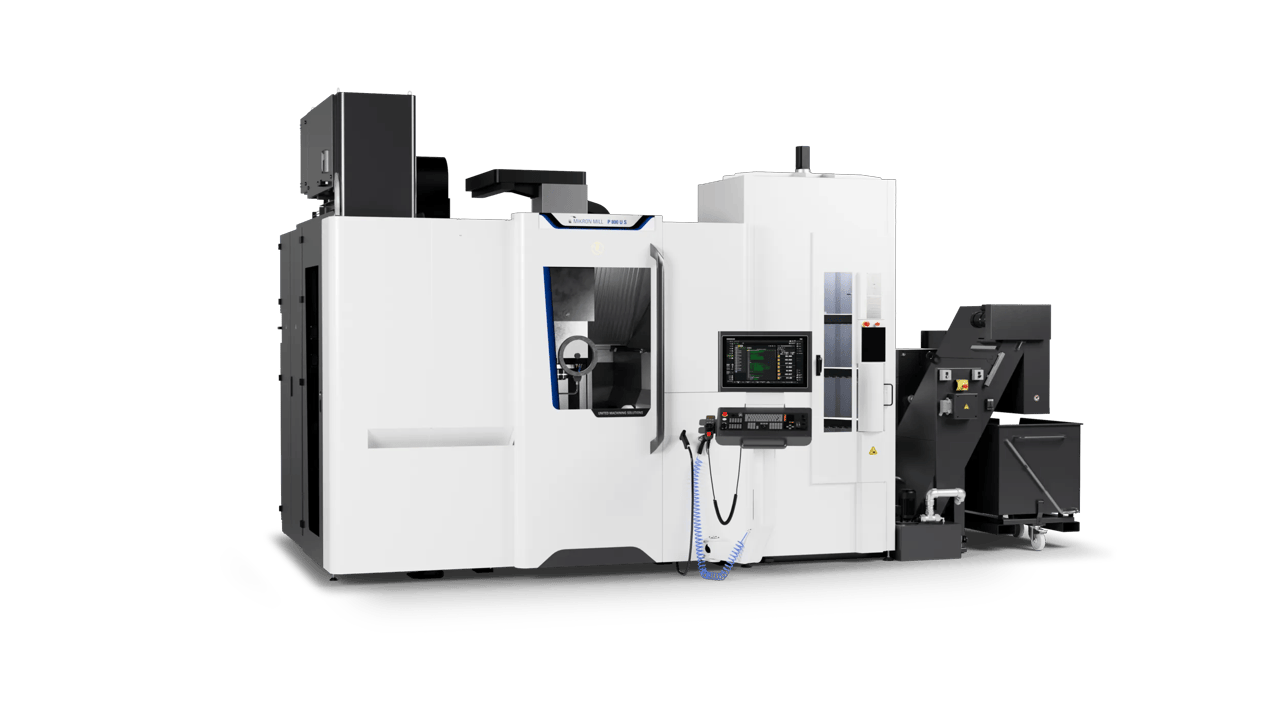

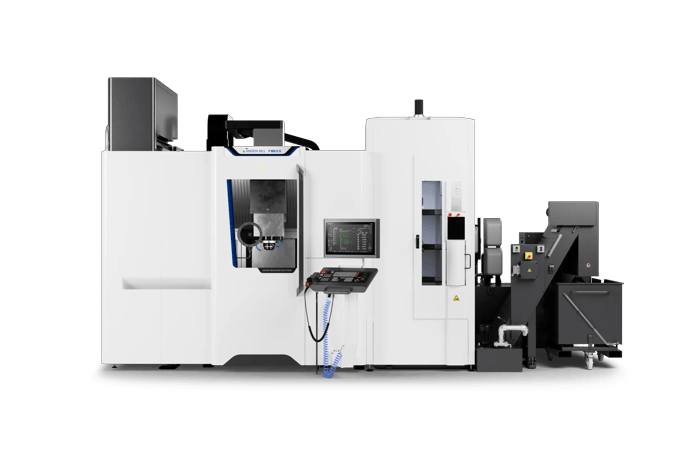

The MIKRON MILL P 800 U (S) is a high-performance 5-axis machining center built for mold and die manufacturers who need reliable, precise production around the clock. With a symmetrical gantry design, water-cooled direct torque motors, and limitless automation possibilities, it handles parts up to 1,000 kg with outstanding precision, from aggressive roughing to finest finishing.
5-AXIS MILLING
Highlights
Numerical control
The MILL P 800 U (S) is available with Heidenhain TNC 640, TNC 7, or Siemens SINUMERIK ONE, three of the most trusted controls in precision machining. Each offers an intuitive interface, advanced programming capabilities, and full compatibility with MIKRON MILL's smart machine modules, giving operators the flexibility to choose the control that best fits their existing workshop infrastructure.

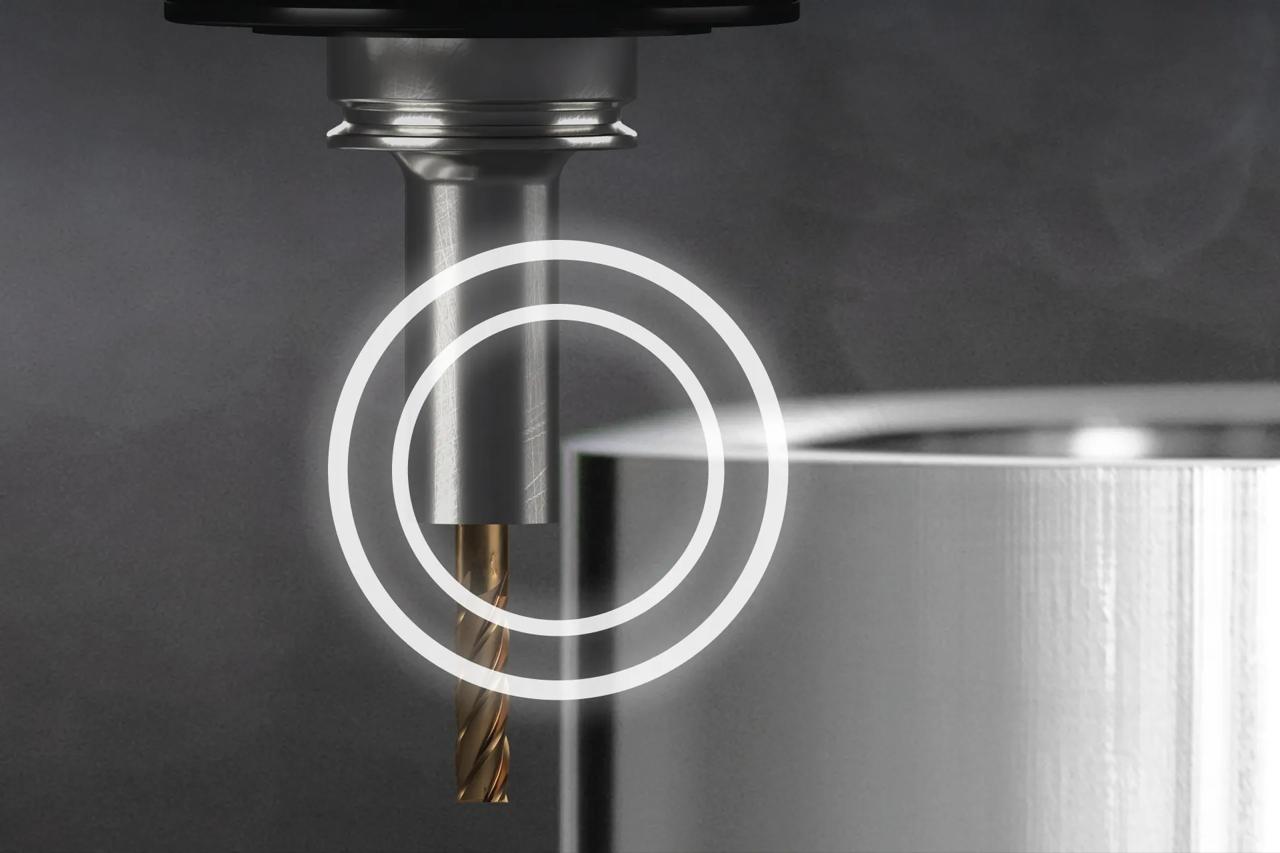

Machine and Spindle Protection (MSP)
MSP is the world's only spindle protection system that works in all directions. Upon detecting a collision, it instantly deflects the spindle and triggers automatic emergency braking, protecting machine geometry, preventing costly repairs, and enabling a full restart in just 10 minutes. Always active and maintenance-free, MSP eliminates machine downtime and gives operators the confidence to run new programs safely from the very first cycle.
High-quality Spindle
The MILL P 800 U (S) is equipped with a high-performance STEP TEC spindle at 20,000 min⁻¹ with HSK-A63 interface, delivering 36 kW and 120 Nm of torque, covering the full range from high-volume roughing to fine surface finishing. The OptiCool design minimizes heat transfer to the machine structure, ensuring thermal stability and maximum geometric precision throughout every production cycle.
The heart of every MIKRON MILL machine.
Discover the technology that makes it possible.

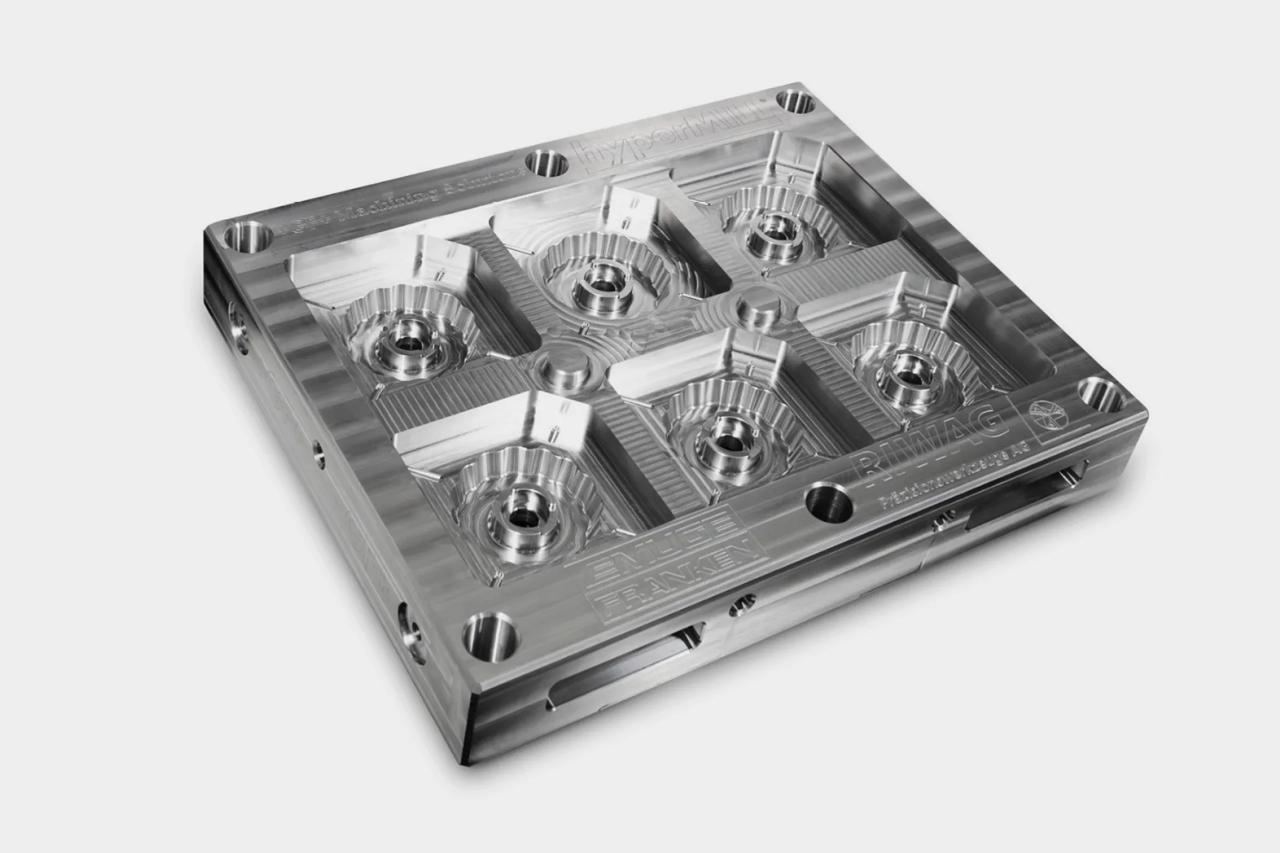

Applications
- Material: Böhler M315
- Dimension: 500 x 400 x 75 mm
- Machining time: Lateral area 2 h 58 min, Pockets 31 min 27 s
- Surface finish: Ra < 0.4 µm
Automation Solutions
The MILL P 800 U is designed for scalable, limitless automation, growing with your production needs without ever compromising the machine's compact footprint.
- Tool magazine — available in 30, 60, 120, 170, or 215 positions, with parallel tool loading for uninterrupted production.
- Pallet systems — supporting 2 (only available for the MILL P 800 U) to 12 pallets in Berg or Delphin configurations, with payloads up to 500 kg.

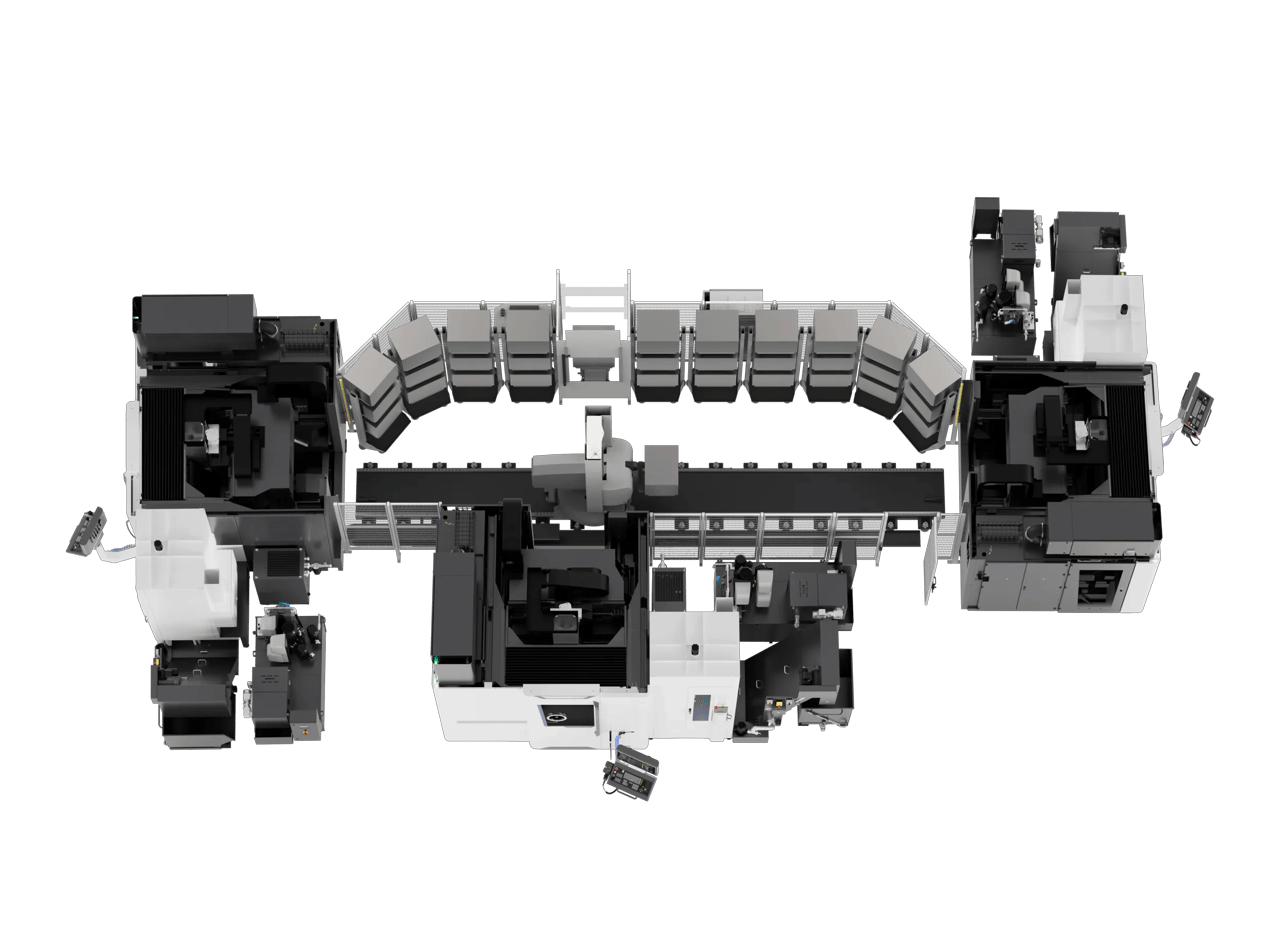

- Robot integration — compatible with SYSTEM 3R Transformer 3-axis and 6-axis robots, enabling autonomous collaborative production across 1 to 20 machines, 24/7.
- Software — JobToolManager, EasyCellManager, and WorkShopManager provide full visibility and control from a single machine to a complex multi-technology cell.
Specifications
Model
Main specifications
- Travel X, Y, Z
- 800 x 800 x 550 mm
- Feed rate X/Y/Z
- 45 (61 dynamic version) m/min
- Swiveling range
- +91/-121°
- Rotary range
- n x 360°
- Feed rate swivel
- 25 (50 dynamic version) rpm
- Feed rate rotary
- 35 (60 dynamic version) rpm
- Working table
- T-slot / parallel Ø 630 or 500 mm / Berg pallet system
- Table load
- 500 / 1,000 kg
- Spindle
- 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm
- Tool magazine
- 30 / 60 / Tool Tower 120 / 170 / 215 pockets
Downloads
Customer Care
From installation to daily production, MIKRON MILL Customer Care keeps your machines running — with genuine original parts, expert repairs, maintenance contracts, and operator training, all from a single point of contact.
