Unleash your full potential

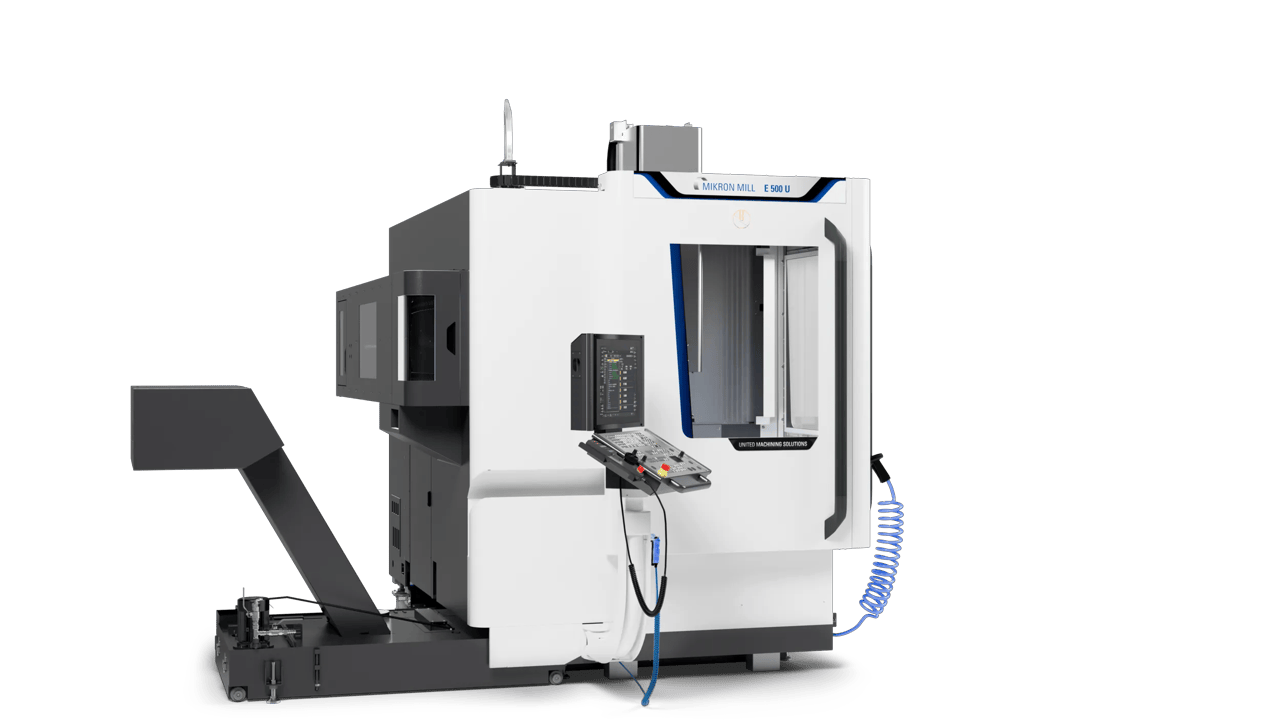

The MIKRON MILL E 500/700 U is a dynamic, high-efficiency 5-axis machining center designed for job shops and part producers who need flexibility, reliability, and 24/7 productive autonomy. Built on a stiff cast iron C-frame with direct torque drive technology and a large swivel range from -65° to +120°, it handles a wider range of parts and materials than any other machining center in its class.
5-AXIS MILLING
Highlights
The benchmark of precision machining and agile productivity
High-efficiency milling

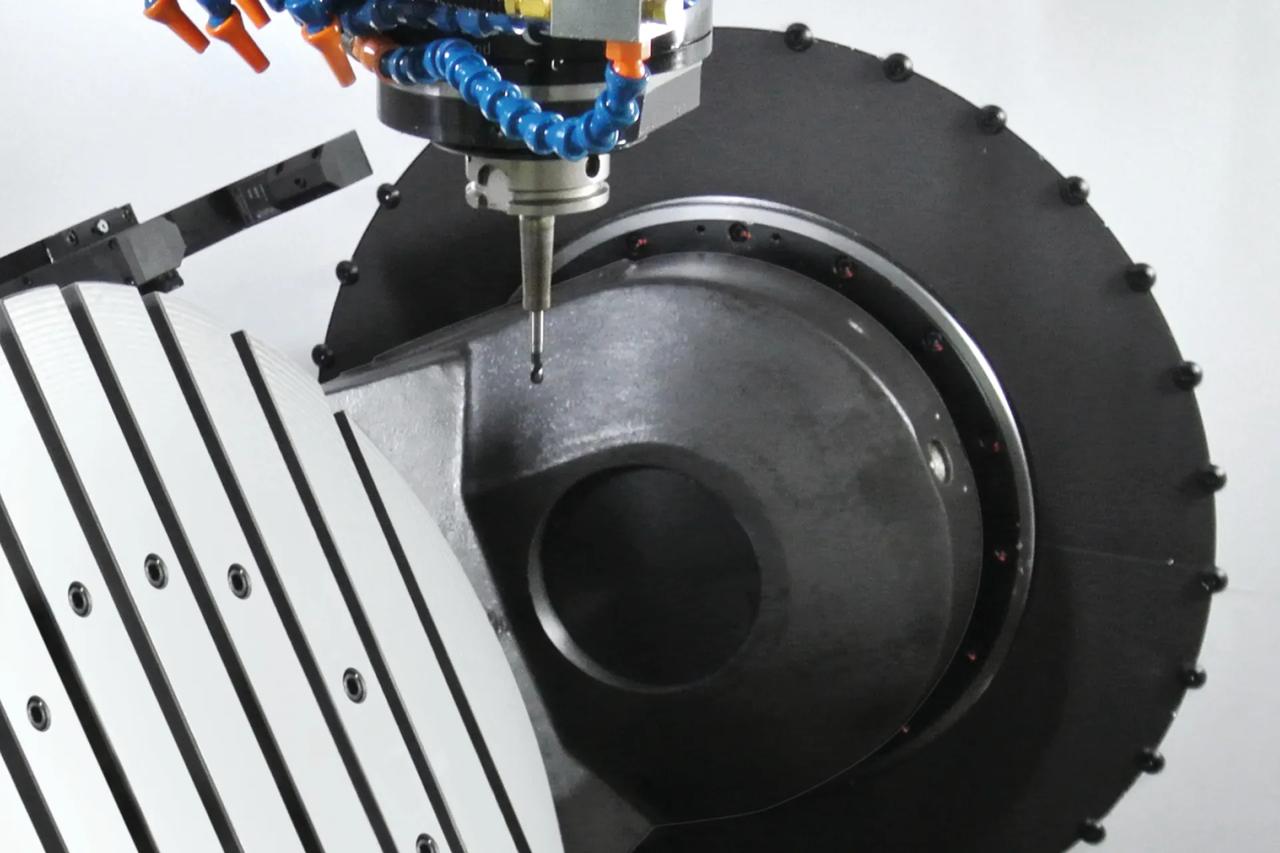

All rotary tables on the MILL E 500/700 U are designed and manufactured in-house by MIKRON MILL. Frictionless direct torque drives on both the rotary and tilting axes eliminate mechanical transmission elements, delivering no backlash, no wear, high dynamics, and repeatability within 10 µm for consistent precision across every production cycle and every material.
Stiff machine construction

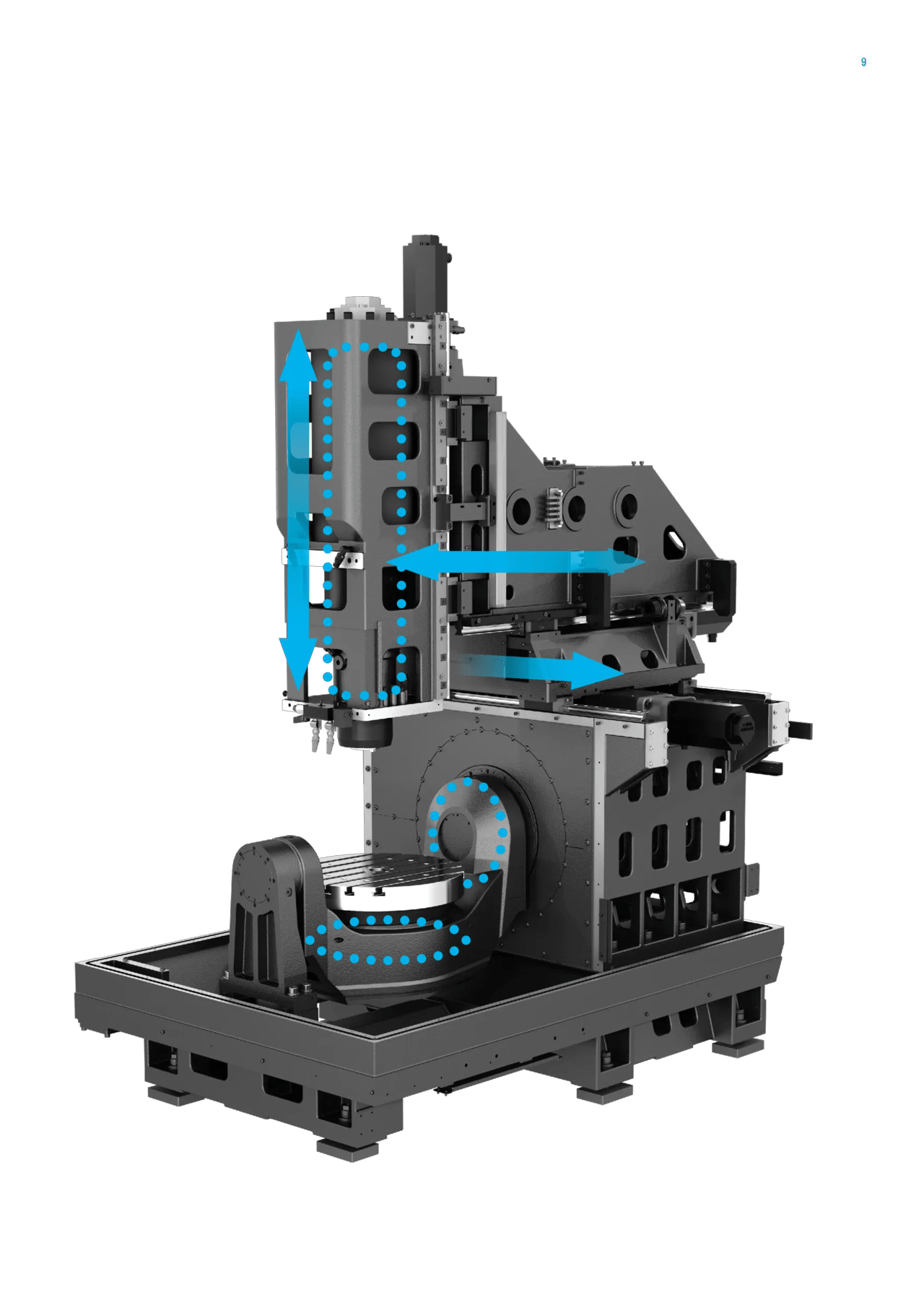

Built on a compact C-frame footprint, the MILL E 500/700 U maximizes workspace efficiency without sacrificing accessibility. The pivot-mounted control console, generously dimensioned pallet magazine door, and optimized chip flow design make daily operation, part loading, and maintenance faster and easier, keeping operators focused on productive machining.
High-quality Spindle
The MILL E 500/700 U is equipped with a high-performance STEP TEC spindle at 20,000 min⁻¹ with HSK-A63 interface, delivering 36 kW and 120 Nm of torque. The OptiCool design keeps the front bearing area cool while a heat barrier cooling loop prevents motor heat from reaching the spindle nose, ensuring thermal stability, high precision, and outstanding surface quality from roughing to finishing.
The heart of every MIKRON MILL machine.
Discover the technology that makes it possible.
Applications

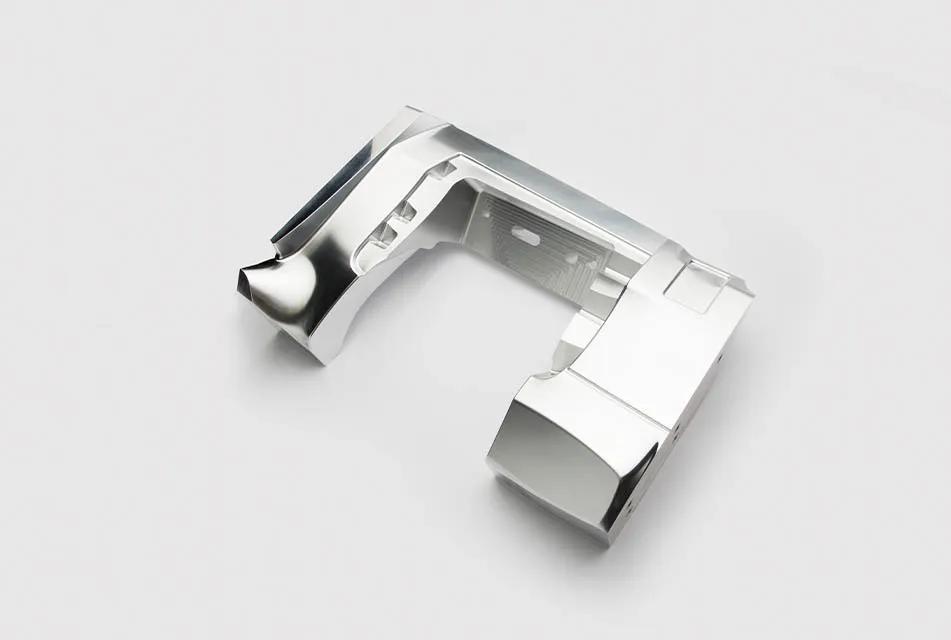

- Material: AL 6082
- Machining time: 23 h
- Accuracy: ± 0.03 mm
Automation Solutions
The MILL E 500/700 U is designed to grow with your production needs, from a single machine to a fully automated cell.

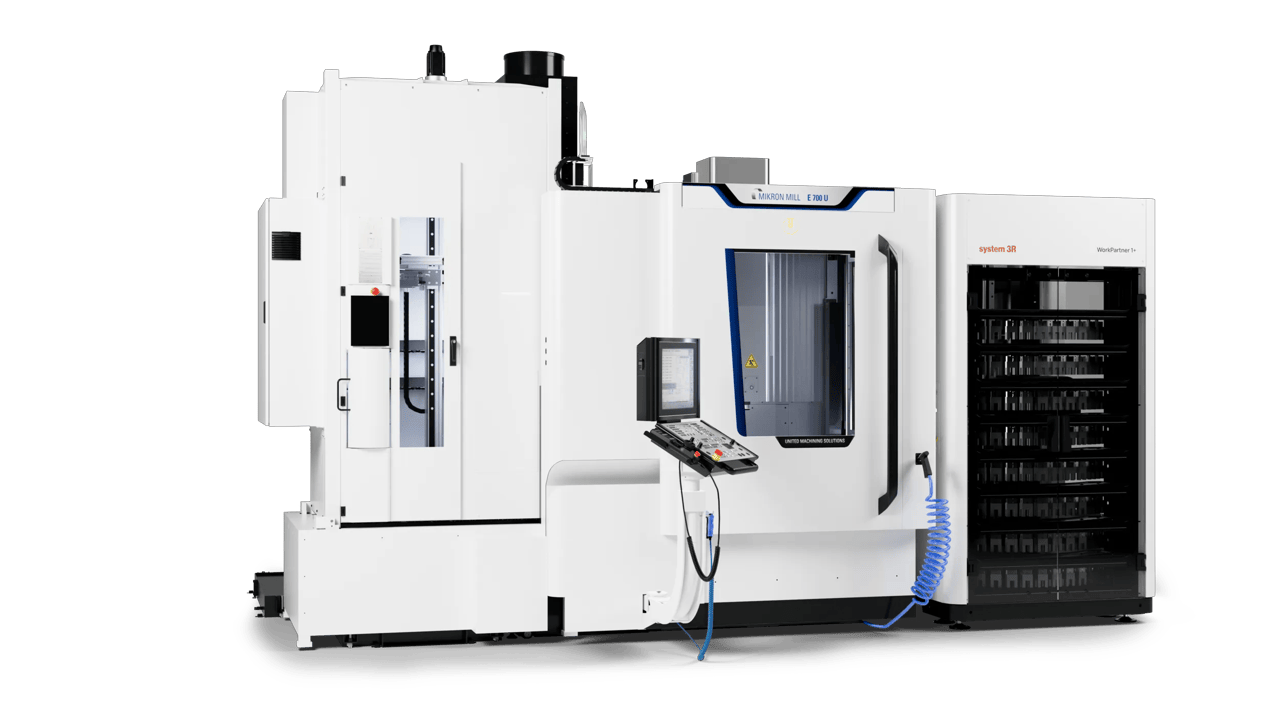

- Integrated pallet magazine: supporting 5 Delphin/MTS or 7 Dynafix/UPC pallets, with ergonomic door design for easy loading of parts up to 200 kg by hand or crane.
- Tool magazine: available in 30, 60, 170, or 215 positions, with parallel machining and tool loading for uninterrupted production.

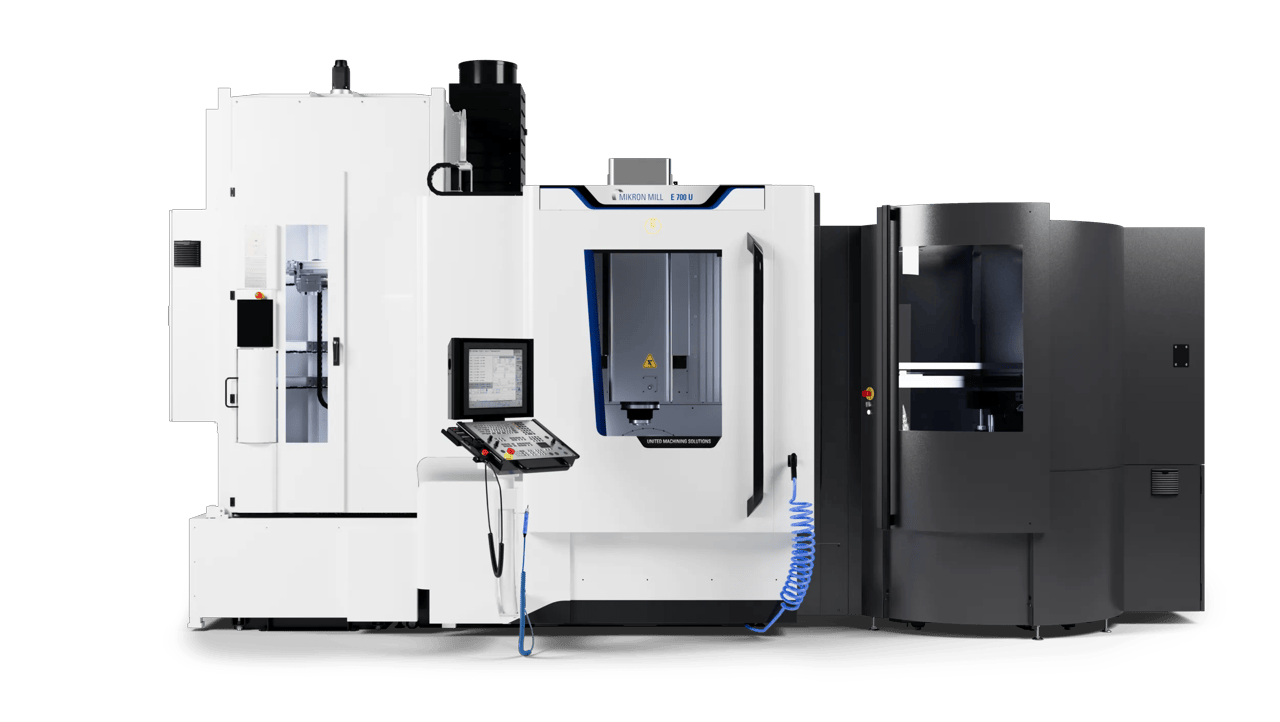

- Robot interface: compatible with SYSTEM 3R WorkPartner 1+, Transformer, and third-party automation systems for full 24/7 autonomous collaborative production.
- JobToolManager (JTM): drag-and-drop job assignment, real-time priority management, and tool availability monitoring directly from the machine control.
Specifications
Model
Main specifications
- Travel X, Y, Z
- 500 x 450 x 400 mm
- Feed rate X/Y/Z
- 30 m/min
- Swiveling range
- -65°/+120°
- Rotary range
- n x 360°
- Feed rate swivel
- 32 rpm
- Feed rate rotary
- 112 rpm
- Working table
- T-slot table Ø500 mm / System 3R Dynafix 350x350 / Erowa UPC 320x320 mm / System 3R Delphin 400x400 / Erowa MTS 400x400 mm
- Table load (3-/5-axis)
- 300 / 200 kg
- Spindle
- 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm
- Tool magazine
- 30 / 60 / 170 pockets
- Control unit
- TNC 640 (Heidenhain)
Downloads
Customer Care
From installation to daily production, MIKRON MILL Customer Care keeps your machines running — with genuine original parts, expert repairs, maintenance contracts, and operator training, all from a single point of contact.
