Universality and precision, at any scale

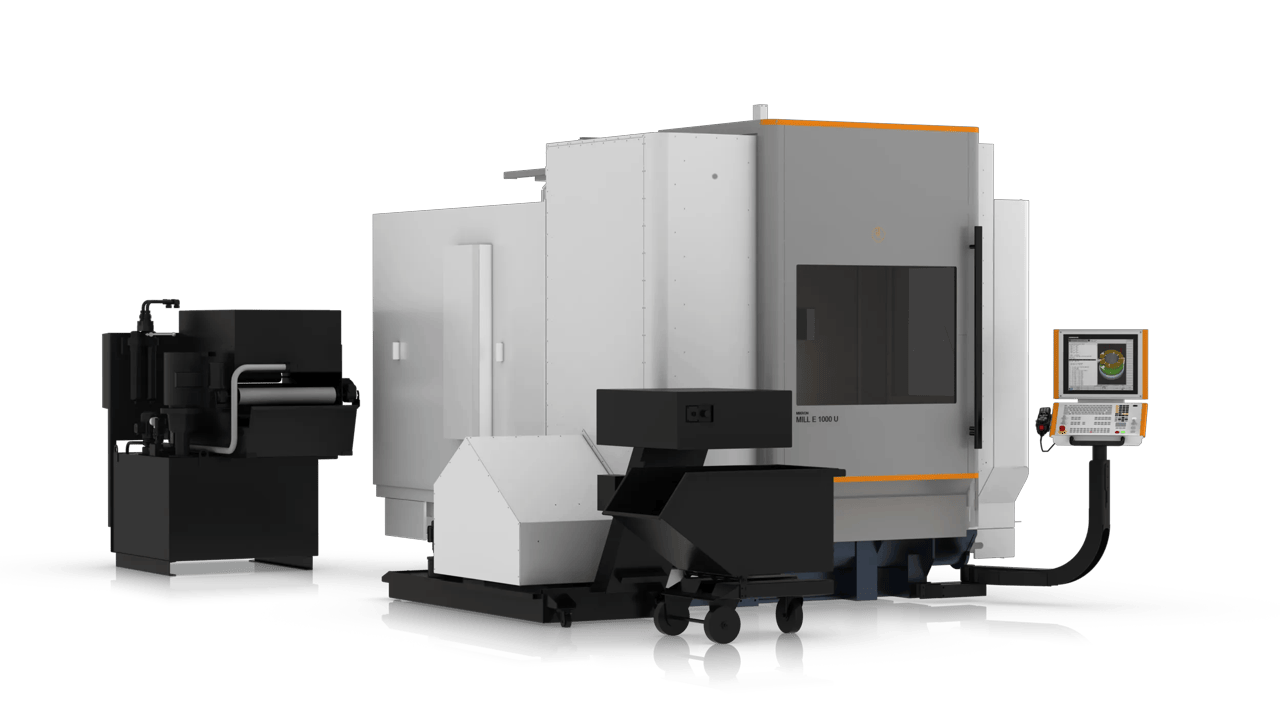

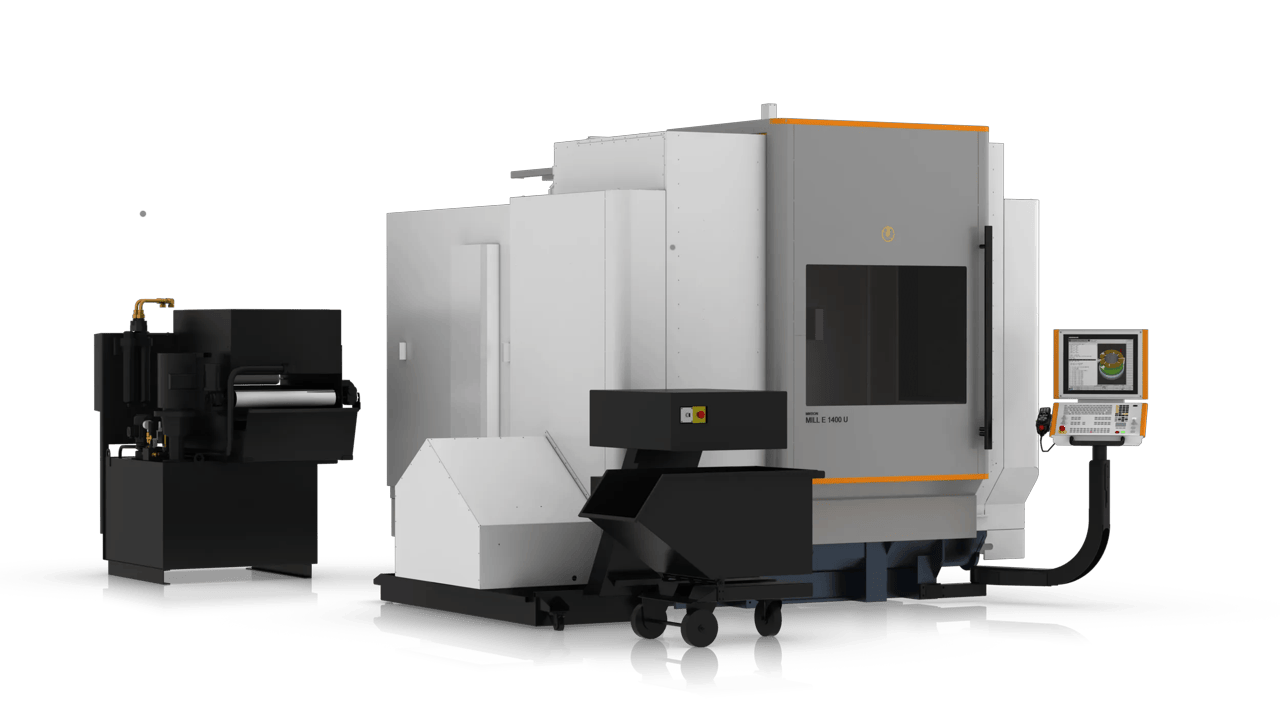

The MIKRON MILL E 1000/1400/1900 U is a high-efficiency 5-axis machining center built for job shops and part producers who deal with ever-changing applications, from tool making and prototyping to small series production. With a thermo-symmetrical structure, large workpiece capacity, and a wide range of spindle and automation options, it handles complex parts of any size with consistent precision and outstanding surface quality.
Highlights

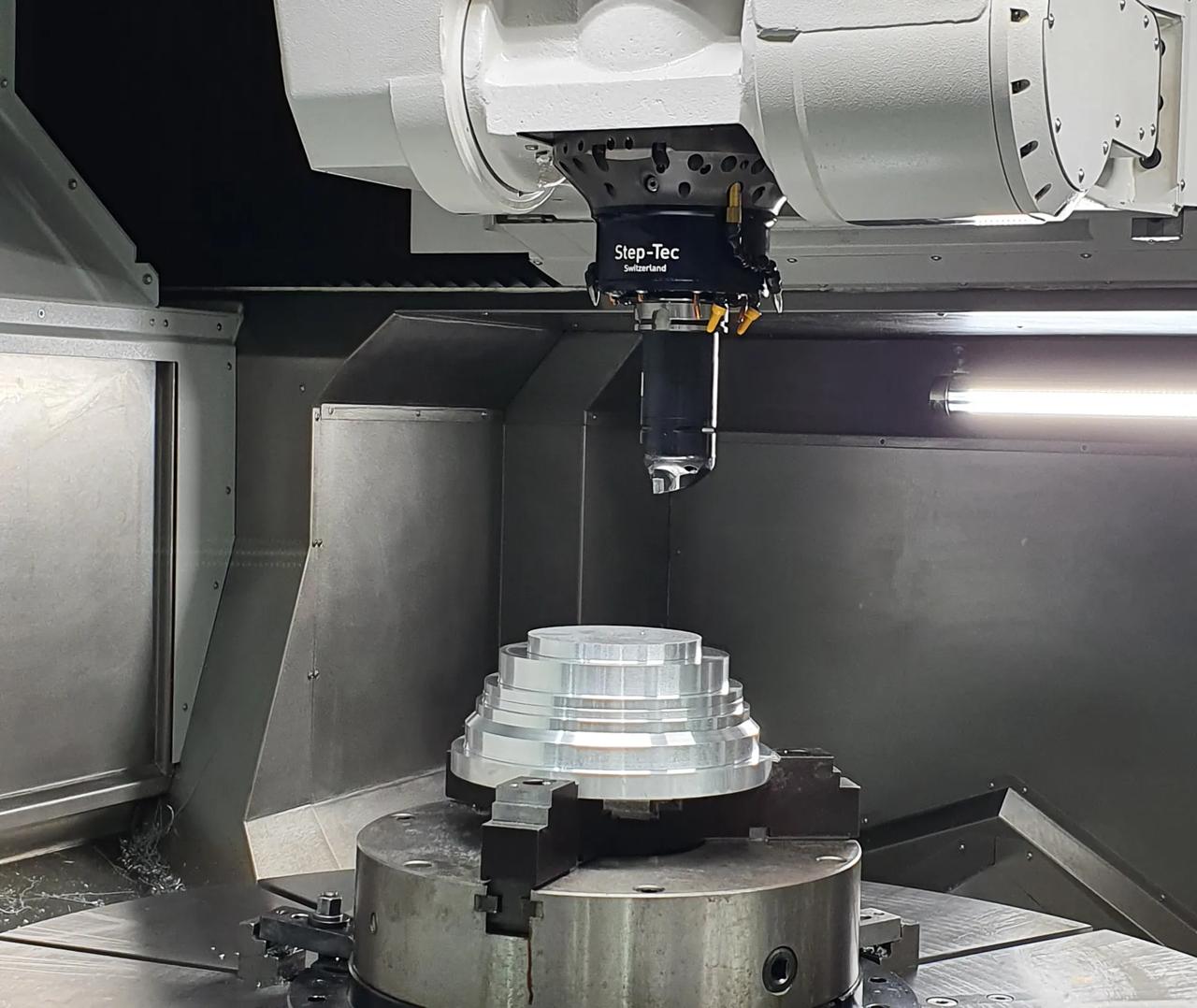

Simultaneous turning option
The MILL E 1400/1900 U ST combines milling and turning on a single machining center, eliminating rechucking, reducing setup time by more than 50%, and cutting roughing costs with a tool cost ratio of 1/100. With no compromise on axis motion performance or process precision, it delivers complete machining in a single clamping operation.

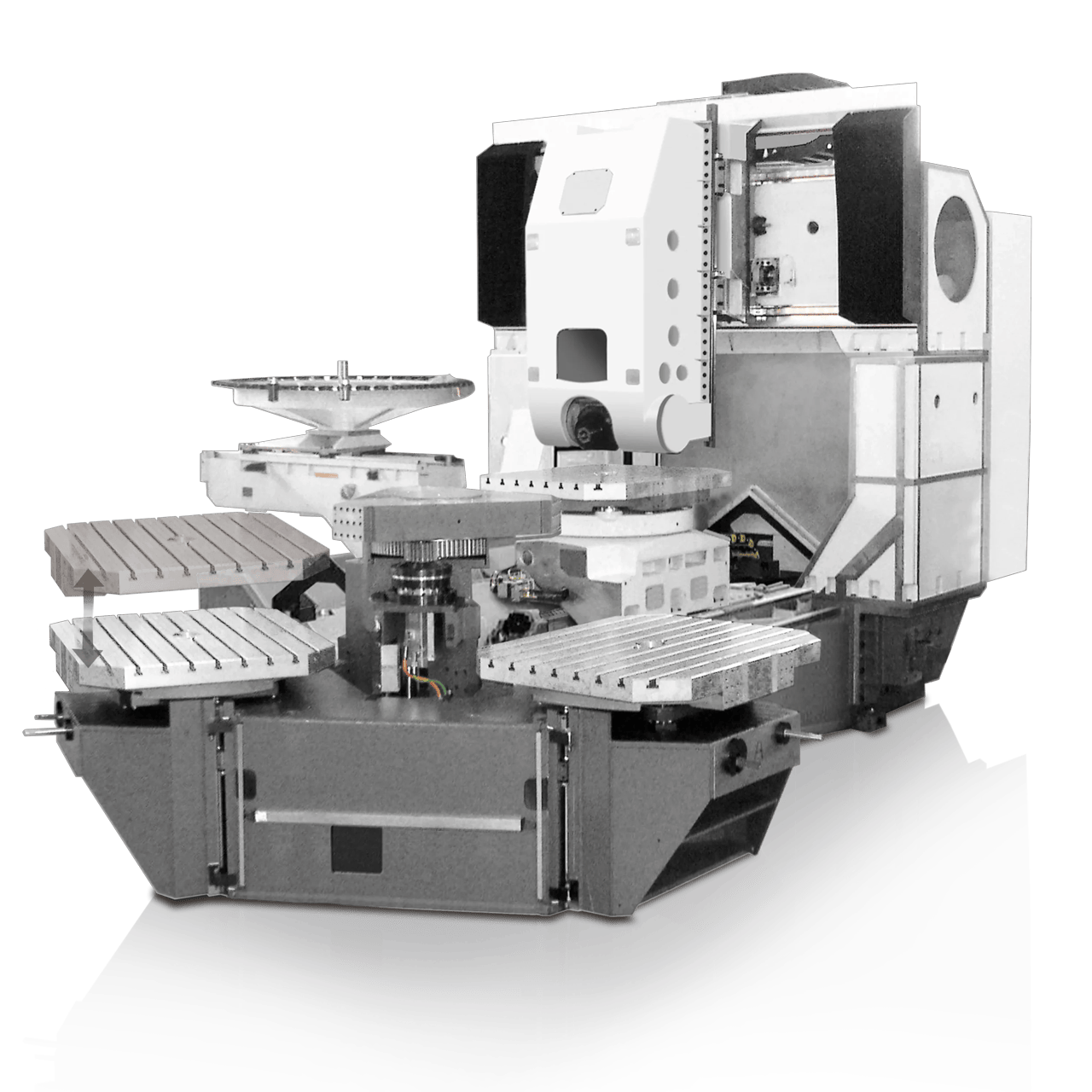

Productivity by design
The MILL E 1000/1400/1900 U is built around an ergonomic concept that keeps operators productive at all times. Pallets lower hydraulically to a comfortable working height, eliminating platforms and steps, while the unusually generous access to the working area, tool magazine, and pallet positions allows special parts to be clamped and prepared during main machining time. The result is a significant increase in daily machine utilization, even in single-shift environments.
High-quality Spindle
The MILL E 1000/1400/1900 U is equipped with high-performance STEP TEC spindles available in a range from 10,000 to 24,000 min⁻¹, with HSK-A63, HSK-A100, and HSK-T100 interfaces covering everything from heavy roughing and turning to high-speed finishing. A super-rigid bearing design with three preloaded hybrid ball bearings in the front ensures milling with extra-long tools reaching into deep cavities, with high milling forces absorbed at the tool tip.
Discover the technology that makes it possible.

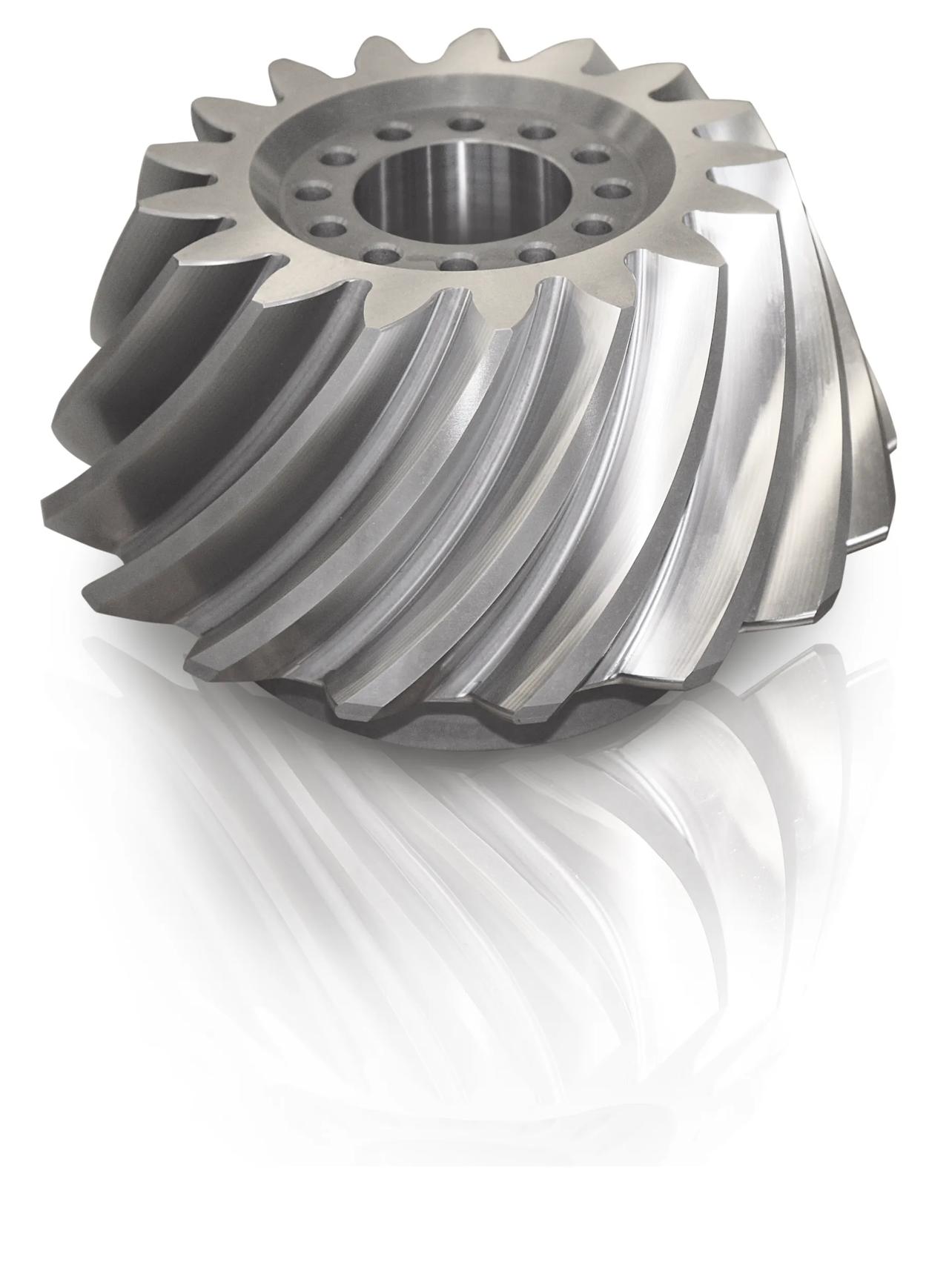

Applications
Automation Solutions
The MILL E 1000/1400/1900 U offers a flexible range of automation solutions to suit every production need. Pallet changers with hydraulic lowering enable efficient part preparation during main machining time, while tool magazines from 30 to 336 positions ensure uninterrupted production. Almost all options can be retrofitted, allowing the machine to grow with your production requirements over time.
Specifications
Main specifications
- Travel X, Y, Z
- 1000 x 1150 x 900 mm
- Feed rate X/Y/Z
- 32 m/min
- Swiveling range
- +16/-120° (HSK-63) / +16/-110° (HSK-100)
- Rotary range
- n x 360°
- Feed rate swivel
- 11 rpm / 20 (S6) rpm
- Feed rate rotary
- 40 rpm
- Working table
- T-slot table Ø1000 mm
- Table load
- 1200 kg
- Spindle
- 10,000 (HSK-A100) / 34 / 324 rpm/kW/Nm or 15,000 (HSK-A63) / 38 / 193 rpm/kW/Nm or 24,000 (HSK-A63) / 30 / 30 rpm/kW/Nm
- Tool magazine
- HSK-63: 30 / 46 / 92 / Tower 116 / 212 / 336 pockets / HSK-100: 32 / 64 / Tower 88 / 130 / 175 pockets
