Efficient production in universal applications

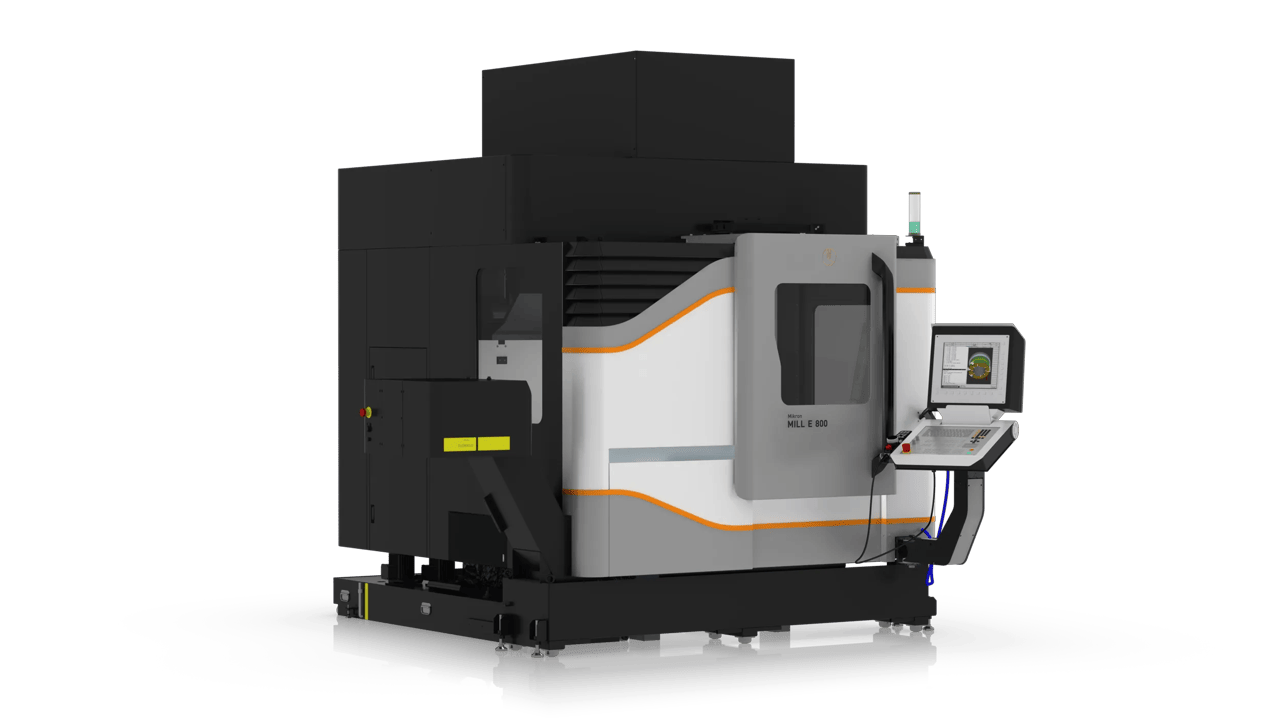

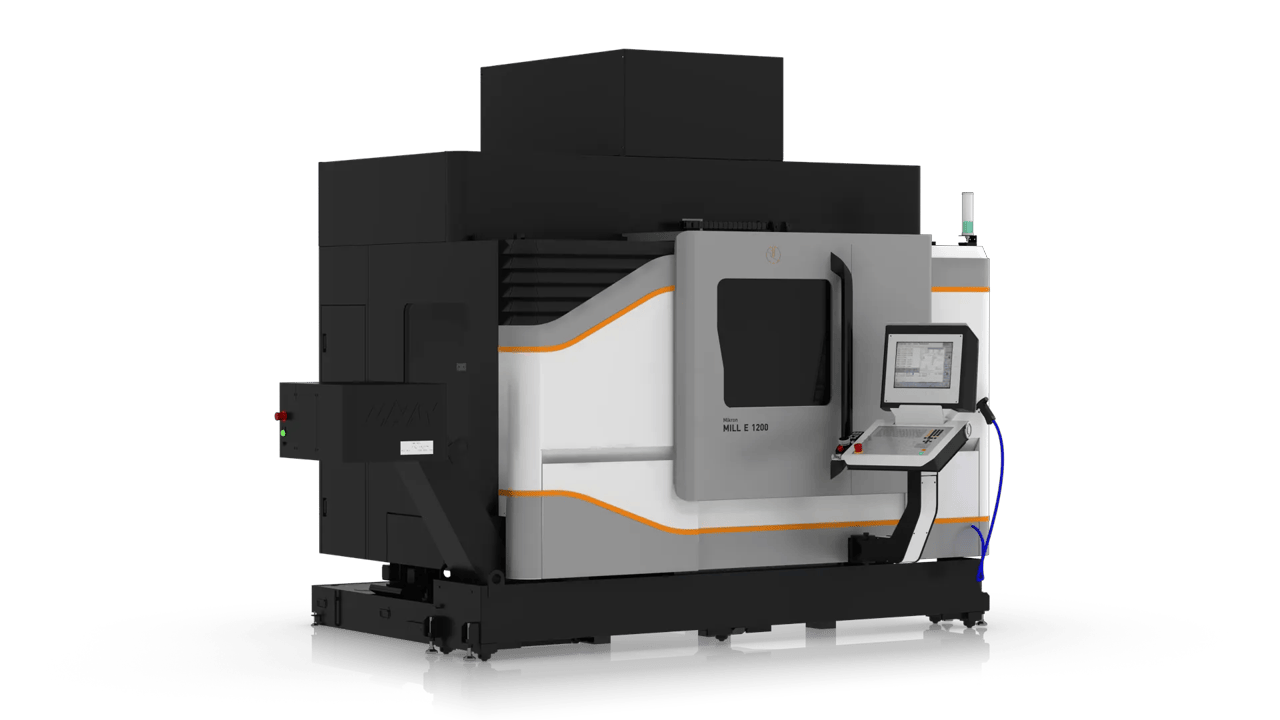

The MIKRON MILL E 800/1200 is the ideal machining center for manufacturers who need reliable, high-quality production across a wide range of materials and industries. Robust, ergonomic, and cost-effective, it integrates proven MIKRON MILL engineering into a versatile solution built to perform all day, every day.
3-AXIS MILLING
Highlights
Body design
The MILL E 800/1200 is built around a generously sized cast iron structure, optimized through advanced FEA simulation for maximum rigidity and vibration absorption, even under full load and continuous operation. Pre-stressed ballscrews, high-rigidity linear guides, and a strongly constructed spindle head with internal coolant circuit complete a mechanical foundation designed for lasting accuracy and reliable daily performance.

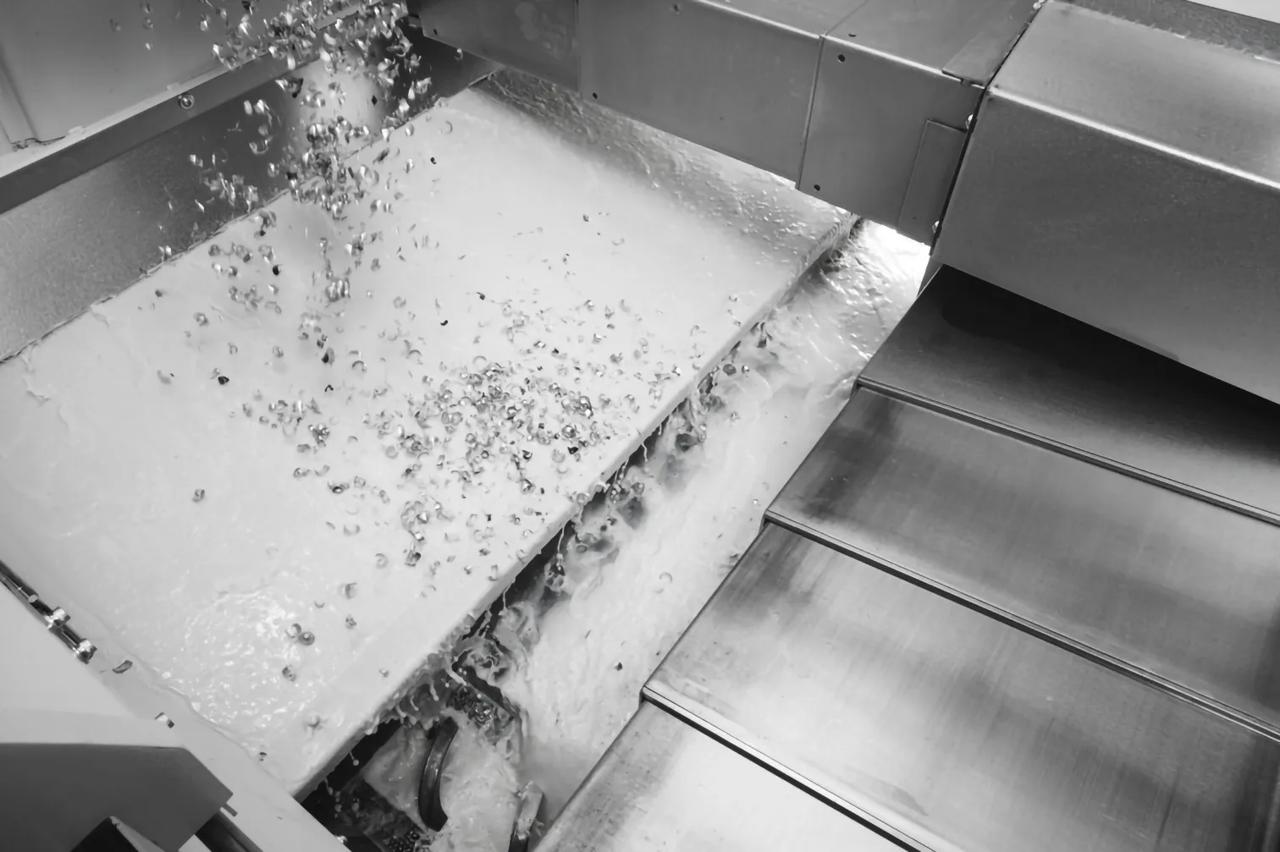

Chip and coolant management

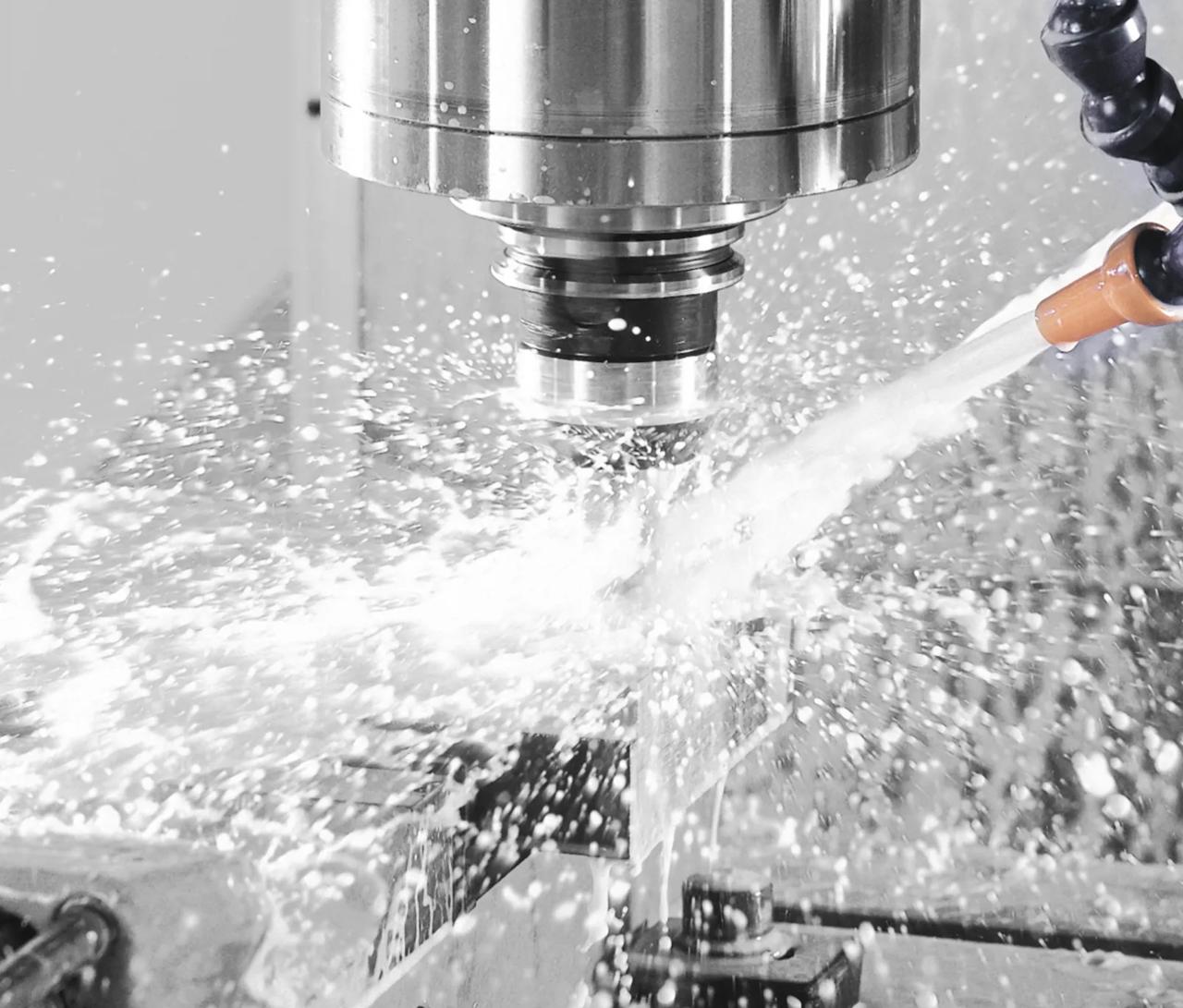

Six adjustable high-flow coolant nozzles, two air blow-off nozzles, and optional through-spindle coolant up to 70 bar ensure optimal cutting conditions across every application. Steeply inclined inner walls and heavy-duty chip conveyors keep the working area clean and production uninterrupted.
High-quality Spindle
The MILL E 800/1200 is equipped with high-performance STEP TEC spindles available in a range from 16,000 to 20,000 min⁻¹, adapting to a wide range of materials and cutting requirements, from heavy roughing to fine surface finishing. A super-rigid bearing design with hybrid ball bearings and through-spindle coolant enables milling with extra-long tools, aggressive material removal rates, and higher feed rates.
The heart of every MIKRON MILL machine.
Discover the technology that makes it possible.
Applications

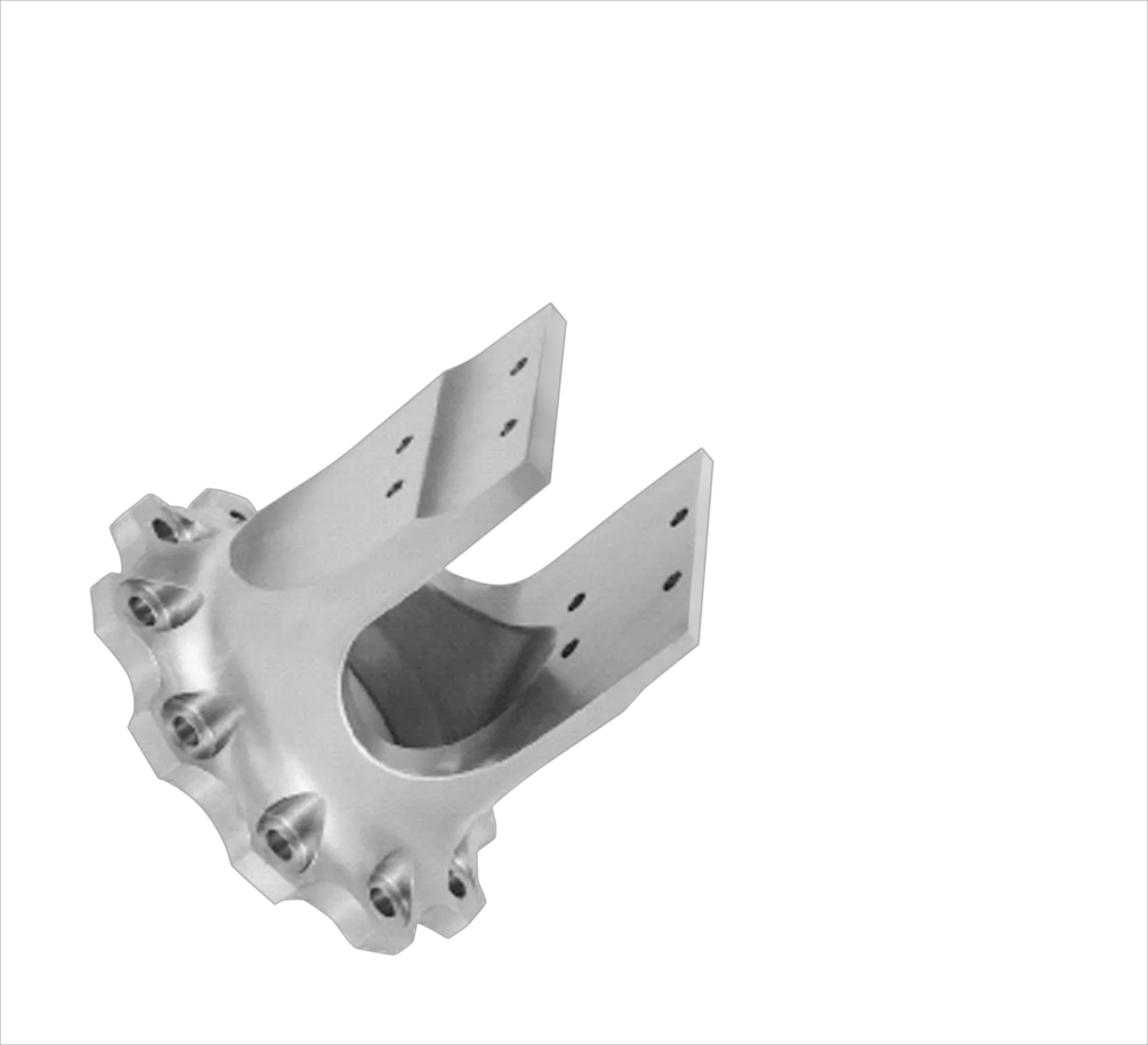

Aerospace - Cardan joint element
Aerospace - Cardan joint element
Automation Solutions
Maximize your output
The MILL E 800/1200 offers a flexible tool magazine solution to suit every production need, available in disc-type (DT 30) or chain magazine (CT 60) configurations, with parallel machining and tool loading for uninterrupted production. Almost all options can be retrofitted, allowing the machine to grow with your production requirements over time.
Specifications
Model
Main specifications
- Travel X, Y, Z
- 850 x 600 x 600 mm
- Feed rate X/Y/Z
- 40 m/min
- Working table
- T-slot table 1050 x 600 mm
- Table load
- 1000 kg
- Spindle
- 12,000 (ISO40/BT40) / 20 / 88 rpm/kW/Nm or 16,000 (HSK-A63/ISO40/BT40) / 25.9 / 99 rpm/kW/Nm or 20,000 (HSK-A63) / 36 / 120 rpm/kW/Nm
- Tool magazine
- 30 / 60 pockets
Downloads
Customer Care
From installation to daily production, MIKRON MILL Customer Care keeps your machines running — with genuine original parts, expert repairs, maintenance contracts, and operator training, all from a single point of contact.
